Night Vision Technology

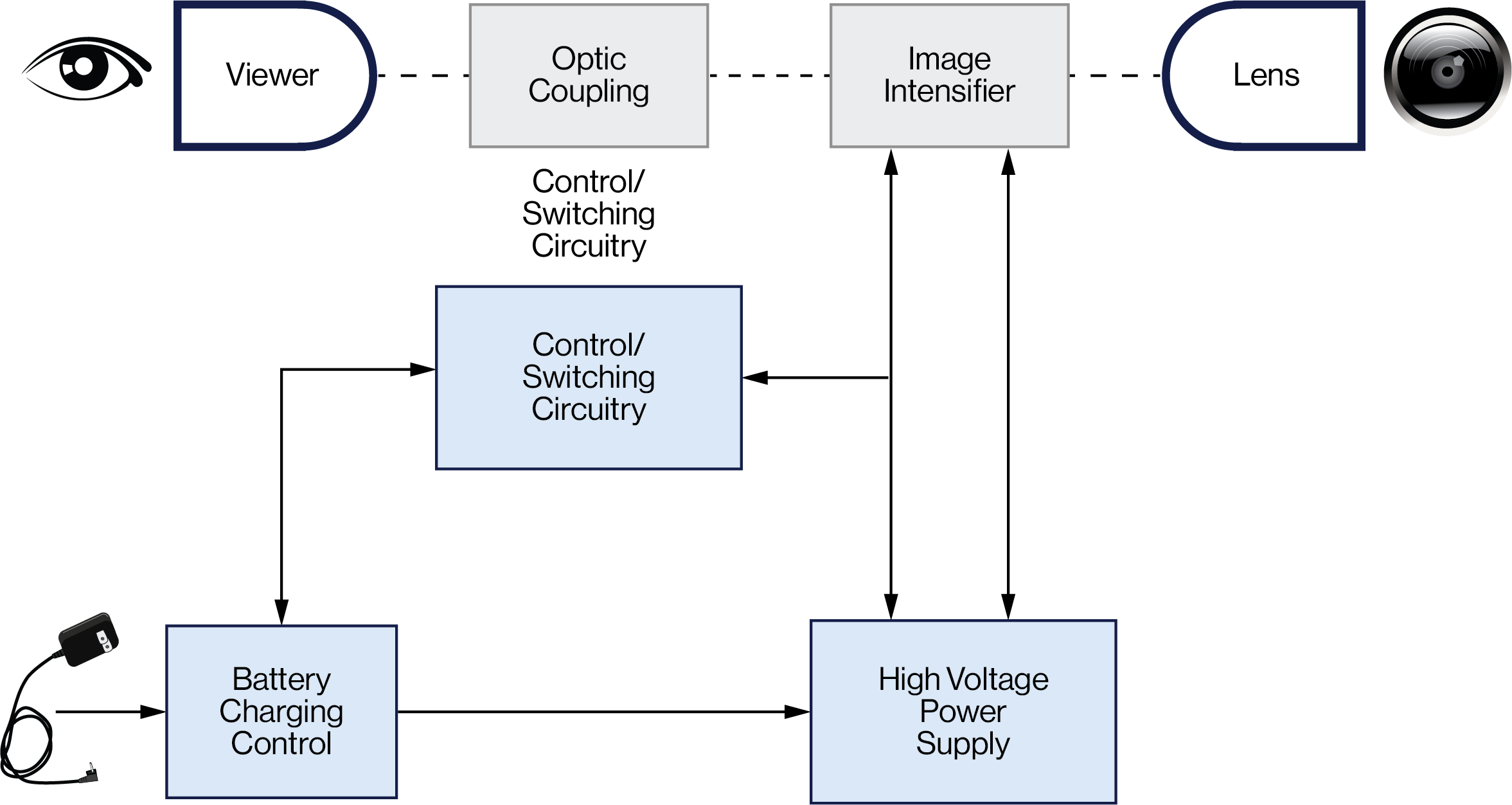

Block Diagram

Central Semiconductor manufactures a deep and wide portfolio of highly efficient discrete components ideally suited for designs in night vision technology.

Control/Switching Circuitry:
Small Signal Transistors
CMLT8099: 500mA, 80V (SOT-563)
BC846BW: 100mA, 65V (SOT-323)

Rectifiers
CMMR1-10: 1A, 1000V (SOD-123F)

Switching Diodes
CMOD4448: 250mA, 100V (SOD-523)

Zener Diodes
CMOZ6L8: 6.8V, 250mW low idle current (SOD-523)

High Voltage Power Supply:
Switching Diodes
CMXD3004SR: 375V, 200mA, dual pair of fast switching, opposing polarity diodes (SOT-26)
CMXD2004S: 300V, 200mA, dual pair of fast switching diodes (SOT-26)
CMXD2004TO: 240V, 200mA, triple isolated, opposing polarity fast switching diodes (SOT-26)
CMSD2005S: 350V, 225mA, pair of in-series fast switching diodes (SOT-323)
CMPD2005S: 350V, 225mA, pair of in-series fast switching diodes (SOT-23)

Battery Charging Control:
MOSFETs
CCSPG0420N: 20A, 40V (Case Type CSP2X2)
CCSPG0450N: 50A, 40V (Case Type CSP5X4)
CCSPG1060N: 60A, 100V (Case Type CSP3.5X2)

Schottky Diodes
CMASH-4: 200mA, 40V (SOD-923)
CFSH05-20L: 500mA, 20V, low VF, low profile (SOD-882L)

Zener Diodes
CMOZ12L: 12V, 250mW low idle current (SOD-523)
CMOZ9L1: 9.1V, 250mW low idle current (SOD-523)

Transient Voltage Suppressors
CMF9.0A: 9V, 200W TVS (SOD-123F)
