Automotive Radar

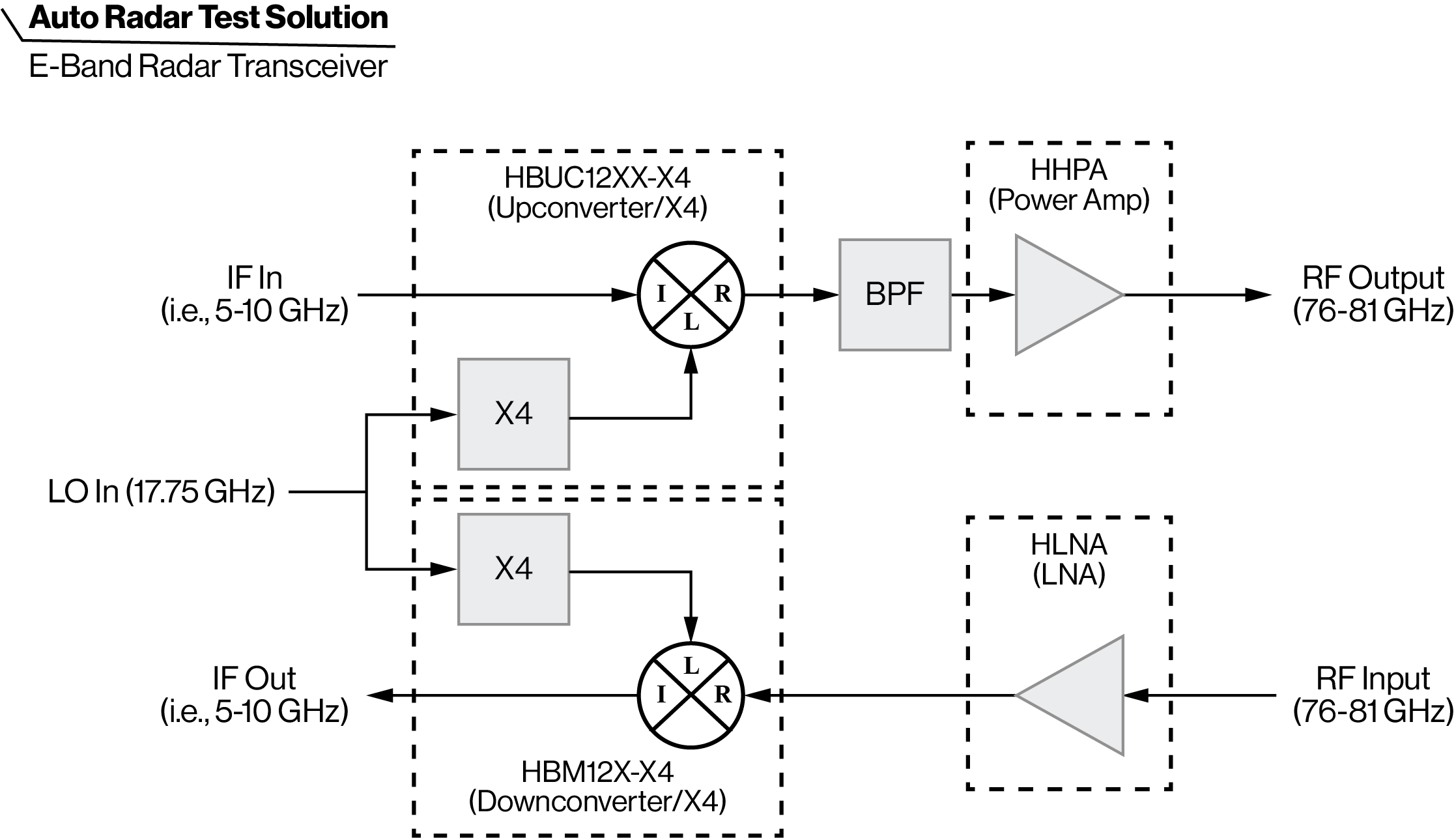

Block Diagram

Renaissance has designed advanced solutions specifically engineered to enhance automotive radar. These components are crucial for enabling the extended range, high-resolution imaging, and precise object detection vital in radar solutions.

Power Amplifiers are essential to boost the strength of the outgoing radar signal, ensuring sufficient power for long-range detection and reliable target identification.

Low Noise Amplifiers are critical for amplifying weak reflected radar signals while introducing minimal additional noise, thereby improving the sensitivity and detection range of the system.

Circulators direct the transmitted signal from the power amplifier to the antenna and route the signal from the antenna to the receiver, all while isolating the transmit and receive paths to prevent interference.

Isolators ensure that the transmitted signal only travels in one direction, preventing reflected power from damaging sensitive components and maintaining signal integrity.

Beamformers are integral to advanced automotive radar systems, enabling the electronic steering of the radar beam to focus detection in specific directions, improving angular resolution and allowing for more precise tracking of multiple targets.

Mixers are fundamental for down-converting high-frequency radar echoes to a lower, more manageable intermediate frequency (IF) for further processing and analysis.
