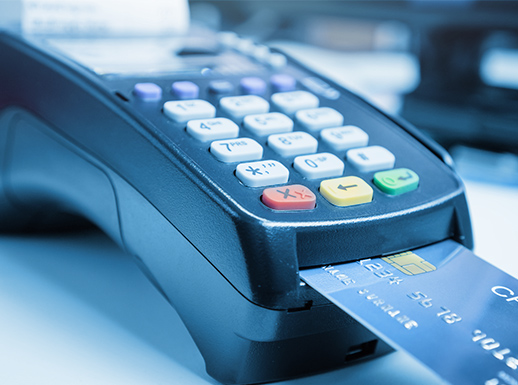

PoE Point of Sale (POS) Terminal

Energy efficiency is the key design parameter of all Power over Ethernet (PoE) Powered Devices (PDs), such as the Point of Sale (POS) terminal. AEM manufactures discrete semiconductors that minimize conduction and switching losses, therefore enhancing the overall energy efficiency of PoE systems.

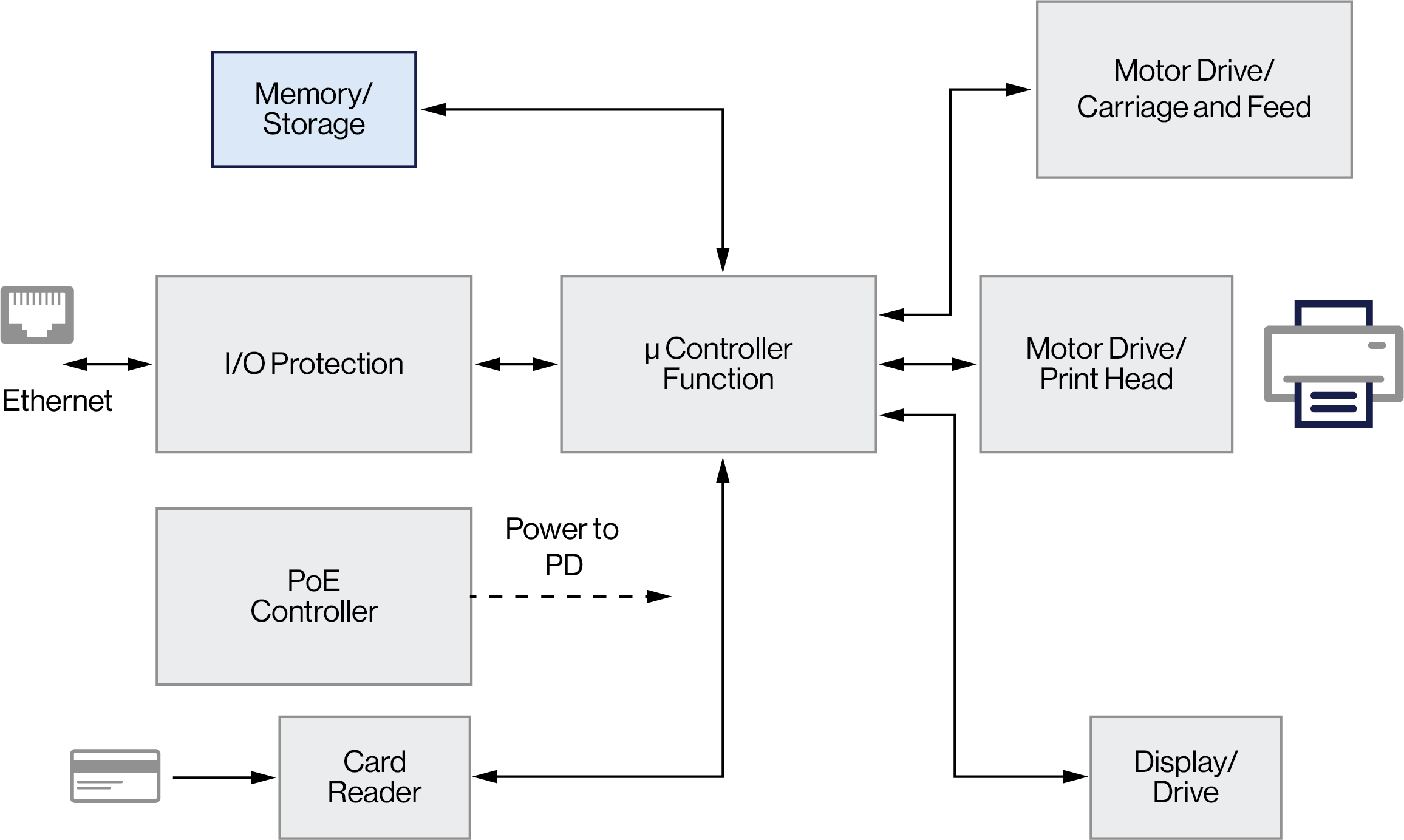

Block Diagram

POE Point of Sales Block Diagram

I/O Protection:
Transient Voltage Suppressors (TVS)
C4SMAFL58A: 58V, 400W TVS (SMAFL)
1SMB58CA: 58V, 600W bi-directional TVS (SMB)
1.5SMC68CA: 58.1V (stand-off), 1500W bi-directional TVS (SMC)

Motor Drive/Carriage and Feed:
MOSFETs
CMLDM7005: 650mA, 20V, Dual N-Channel MOSFET (SOT-563)
CMUDM7004: 450mA, 30V, N-Channel MOSFET (SOT-523)

Zener Diodes
CMOZ12L: 12V, 250mW low idle current Zener diode (SOD-523

µController Function:
Zener Diodes
CMOZ5L1: 5.1V, 250mW, low idle current Zener diode (SOD-523)
CMOZ12L: 12V, 250mW low idle current Zener diode (SOD-523)
CMDZ5L1: 5.1V, 250mW, low idle current Zener diode (SOD-323)

Transient Voltage Suppressors (TVS)
CFTVS5V0LC: 5V, low capacitance, low profile ESD TVS protector (SOD-882L)
CMO5V0LC: 5V, low capacitance, low profile ESD TVS protector (SOD-523)
CMATVS3V3: 3.3V ESD TVS protector (SOD-923)


Motor Drive / Print Head
MOSFETs
CXDM6053N: 60V, 5.3A, N-Channel MOSFET (SOT-89)
CMPDM7002AHC: 60V, 1A, N-Channel MOSFET (SOT-23)
CMLDM7005: 20V, 650mA,Dual N-Channel MOSFETs (SOT-563)

Zener Diodes
CMOZ5L1: 5.1V, 250mW, low idle current Zener diode (SOD-523)
CMOZ12L: 12V, 250mW low idle current Zener diode (SOD-523)

PoE Controller
Schottky Bridge Rectifiers (Full Wave)
CBRHDSH1-100: 1A, 100V Schottky Bridge (HD DIP)
CBRHDSH2-100: 2A, 100V Schottky Bridge (HD DIP)
CBRLDSH2-100: 2A, 100V Schottky Bridge (LPDIP)
CBRDFSH1-40: 1.0A, 40V (BR DFN)
CBRDFSH1-60: 1.0A, 60V (BR DFN)
CBRDFSH1-100: 1.0A, 100V (BR DFN)
CBRDFSH2-40: 2.0A, 40V (BR DFN)
CBRDFSH2-100: 2.0A, 100V (BR DFN)

Zener Diodes
CMOZ5L1: 5.1V, 250mW, low idle current Zener diode (SOD-523)
CMDZ5L1: 5.1V, 250mW, low idle current Zener diode (SOD-323)

MOSFETs
CEDM7002AE: 300mA, 20V, low profile N-Channel MOSFET (SOT-883L)
CEDM8004: 450mA, 30V, low profile P-Channel MOSFET (SOT-883L)

Card Reader
Transient Voltage Suppressors (TVS)
CFTVS5V0LC: 5V, low capacitance, low profile ESD TVS protector (SOD-882L)
CMATVS3V3: 3.3V ESD TVS protector (SOD-923)

Schottky Diodes
CMASH-4: 200mA, 40V, Schottky diode (SOD-923)
CFSH05-20L: 500mA, 20V, low VF, low profile Schottky diode (SOD-882L)
CMSSH-3C: 100mA, 30V, dual common cathode, Schottky diodes (SOT-323)

Display / Drive
MOSFETs
CMUDM7004: 450mA, 30V, N-Channel MOSFET (SOT-523)
CEDM7001: 20V, 100mA, low profile N-Channel MOSFET (SOT883L)

Schottky Diodes
CFSH01-30L: 200mA, 20V, low VF, low profile Schottky diode (SOD-882L)
