Air Conditioner Unit

As consumers and industries increasingly prioritize energy savings and environmental responsibility, the components within these systems must perform at peak efficiency. AEM is at the forefront of this evolution, manufacturing a comprehensive range of discrete semiconductor devices specifically engineered to meet these rigorous demands.

Block Diagram

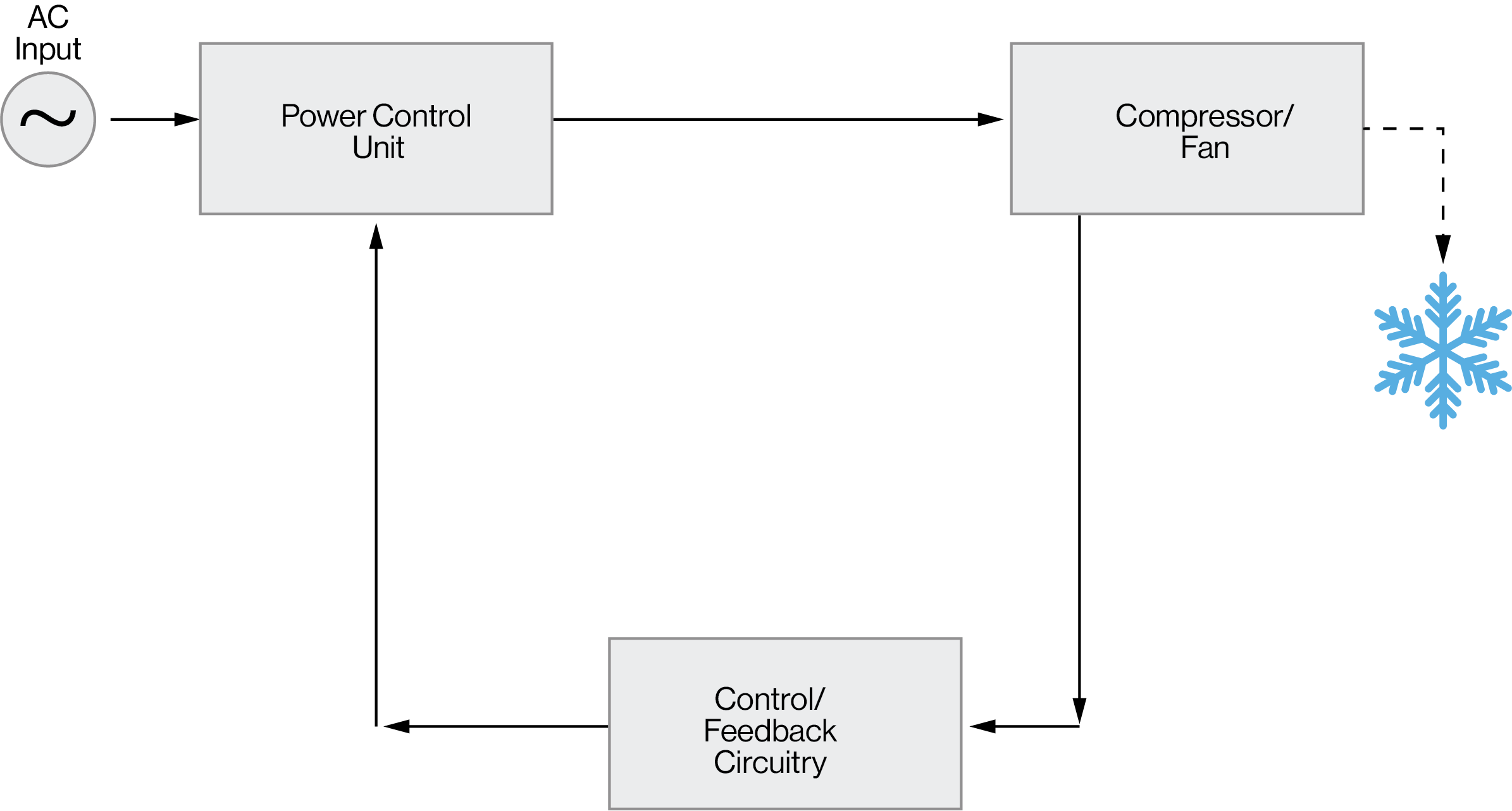

Air Conditioner Block Diagram

Modern air conditioning units place a premium on the efficient delivery of cool air. Central Semiconductor manufacturers discrete semiconductor devices that satisfy the energy conscious demands placed upon higher and lower power semiconductor components needed in these new energy efficient systems.

Power Control Unit:
Rectifiers
CMR5H-06: 5A, 600V, 25ns HyperFast Rectifier (SMC)
CHD8-06: 8A, 600V, 25ns HyperFast Rectifier (DPAK)
CTLHR10-06: 10A, 600V, 25ns HyperFast Rectifier (TLM364)
CUD10-06: 10A, 600V, 35ns Ultra Fast Rectifier (DPAK)

MOSFETs
CDM4-650: 4A, 650V, N-Channel (DPAK)
CDM7-650: 7A, 650V, N-Channel (DPAK)
CDM22010-650: 10A, 650V, N-Channel (TO-220)

Transient Voltage Suppressors (TVS)
P6KE400CA: 600W, 342V (stand-off), bi-directional TVS (DO-15)
3SMC170CA: 3kW, 170V (stand-off), bi-directional TVS (SMC)
5SMC170A: 5kW, 170V (stand-off), bi-directional TVS (SMC

Compressor/Fan:
TRIACs
CQDD-8M: 8A, 600V (D2PAK)
CQDD-12M: 12A, 600V (D2PAK)

Control/Feedback Circuitry:
Schottky Rectifiers
CMDSH05-4: 0.5A, 40V (SOD-123)

MOSFETs
CMLDM7005: 20V, 650mA Dual N-Channel (SOT-563)
CMLDM8005: 20V, 650mA Dual P-Channel (SOT-563)
CMPDM203NH: 20V, 3.2A N-Channel (SOT-23F)

Switching Diodes
CMOD4448: 250mA, 100V (SOD-523)
CMHD2003: 2200mA, 250V (SOD-123)
