Alarm Sensor

Security systems are an extremely important component of protecting any building and its contents, whether it be residential, retail, or other. In order to adequately notify an owner of a break-in, the semiconductor devices integrated into the alarm circuit must demonstrate rapid response times and be highly reliable. AEM has a wide portfolio of discrete devices that are both fast-switching and of the highest quality, guaranteeing optimal security system operation.

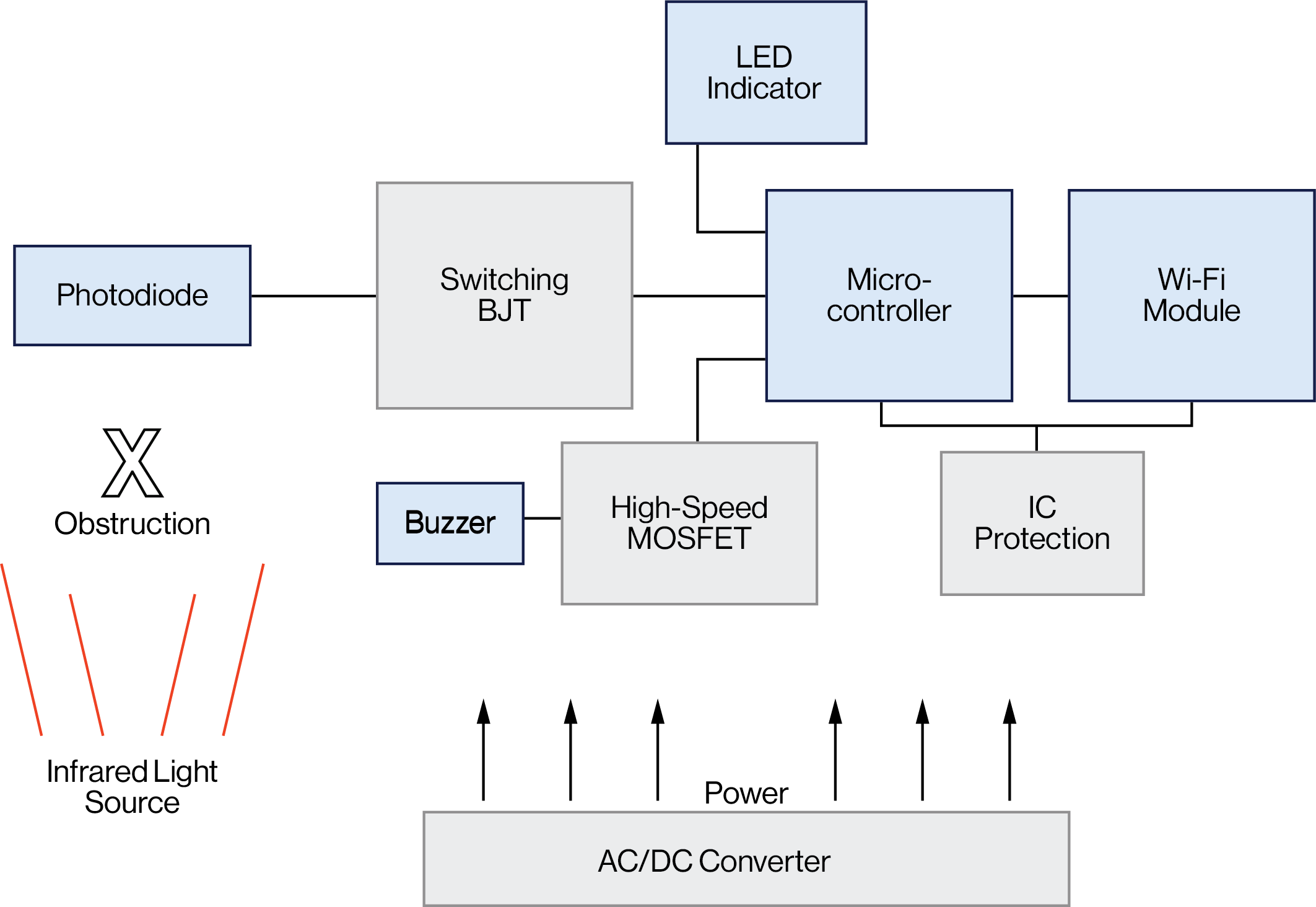

Block Diagram
Security systems are an extremely important component of protecting any building and the contents, whether it be residential, retail, or other. In order to adequately notify an owner of a break-in, the semiconductor devices integrated into the alarm circuit must demonstrate rapid response times and be highly reliable. Central Semiconductor has a wide portfolio of discrete devices that are both fast-switching and of the highest quality, guaranteeing optimal security system operation.

Switching BJT:
Transistors (Standard Switching Options)
BC546A: 100mA NPN (TO-92)
BC547B: 100mA NPN (TO-92)
BC184B: 200mA NPN (TO-92)
BC337: 800mA NPN (TO-92)
Transistors (Low Noise Options)
BCV72: 100mA NPN (SOT-23)
BCX70G: 100mA NPN (SOT-23)

High Speed MOSFET:
CEDM7001VL: 10VGS, 100mA (SOT-883VL)
CMNDM7001: 10VGS, 100mA (SOT-953)
CMUDM7001: 10VGS, 100mA (SOT-523)

AC/DC Converter:
North America Protection
P6SMB200CA: 171V (SMB)
Europe Protection
P6KE400CA: 343V (DO-15)

IC Protection:
Transient Voltage Suppressors (Power 12W-20W)
CFTVS5V0LC: 5V Logic (SOD-882L)
CFTVS5V0BULC: 5V Logic (SOD-882L)
CMO5V0LC: 5V Logic (SOD-523)
Transient Voltage Suppressors (Power 25W-40W)
CMNTVS5V0: 5V Logic (SOT-953)
CTLTVS5V0B: 5V Logic (TLM2D3D6)
CTLTVS5V0BULC: 5V Logic (TLM2D3D6)
