Motor Control System

Motor Control System

Today’s intelligent motor control systems apply power to motors only as needed, in the amount required, and in near-perfect unison with the dynamics of the power grid. To this end, AEM provides a host of devices that assist in motor control power management, Power Factor Correction (PFC), and control circuit functionality.

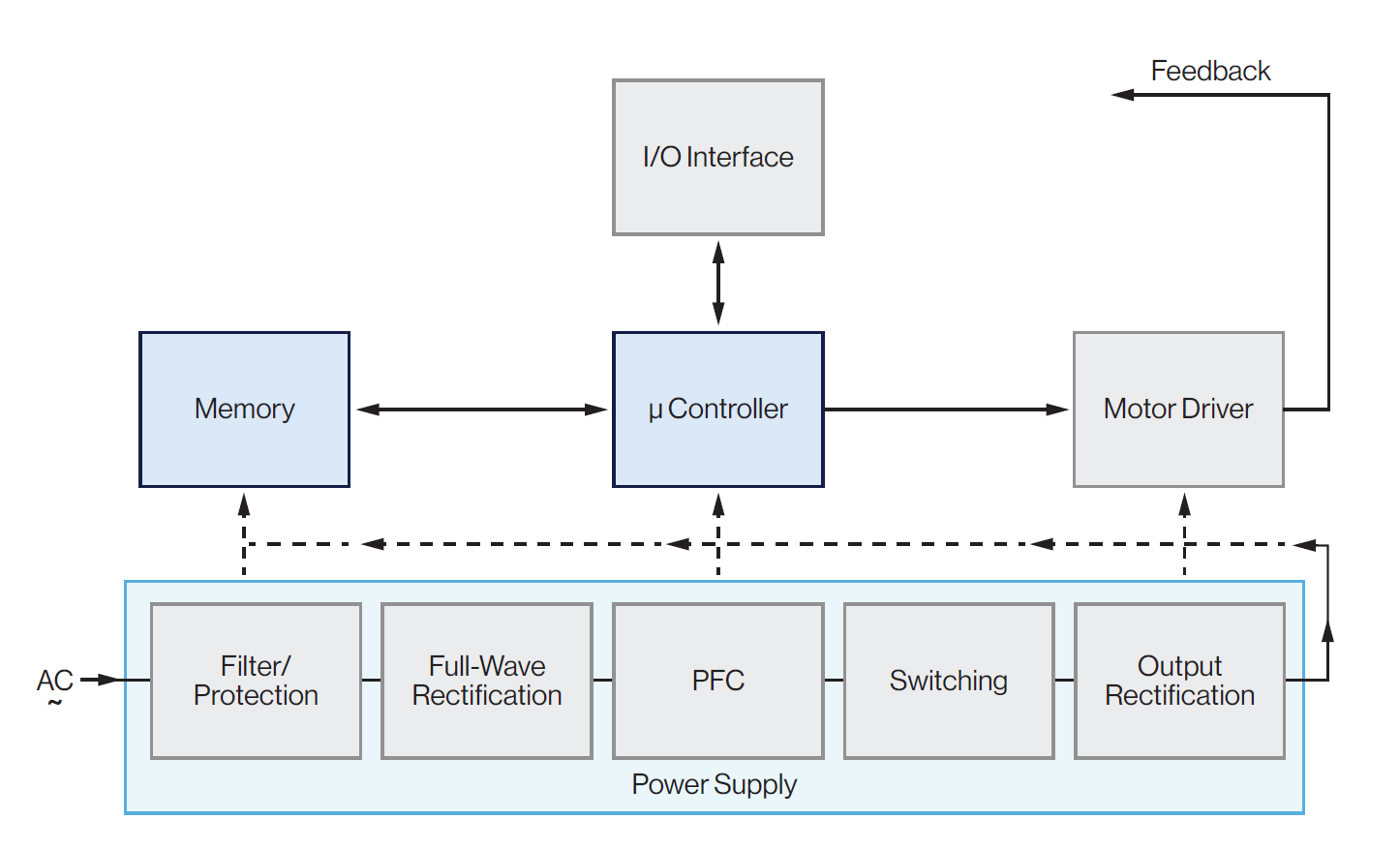

Block Diagram

Today’s intelligent motor control systems apply power to motors only as needed, in the amount required, and in near perfect unison with the dynamics of the power grid. To this end, Central Semiconductor provides a host of devices that assist in motor control power management, Power Factor Correction (PFC) and control circuit functionality.

I/O Interface:
Transient Voltage Suppressors (TVS)
CFTVS5V0LC: 5.0V, 0.9pF, Single, ESD TVS (SOD-882L)
CTLTVS12: 9.0V (stand-off), 14pF, Single, ESD TVS (TLM2D3D6)
CMXTVS5-4: 5.0V, 0.6pF, 4 line ESD TVS Array (SOT-26)
CMNTVS5V0:    5.0V, 5.5pF, 4 line ESD TVS Array (SOT-953)

Motor Driver
MOSFETs
CWDM3011N: 11A, 30V, N-Channel MOSFET (SOIC-8)
CWDM3011P: 11A, 30V, P-Channel MOSFET (SOIC-8)
CXDM3069N: 6.9A, 30V, N-Channel MOSFET (SOT-89)
CXDM4060N: 6.0A, 40V, N-Channel MOSFET (SOT-89)
CXDM4060P: 6.0A, 40V, P-Channel MOSFET (SOT-89)
CWDM305ND: 5.8A, 30V, Dual, N-Channel MOSFET (SOIC-8)
CWDM305PD: 5.3A, 30V, Dual, P-Channel MOSFET (SOIC-8)

Power Supply --------------

Filter / Protection
3SMC170CA: 3000W Peak, 170V bi-directional, 5% TVS (SMC)
1.5SMC170CA: 1500W Peak, 170V bi-directional, TVS (SMC)
1.5SMC200CA: 1500W Peak, 200V bi-directional, 5% TVS (SMC)
1.5SMC220CA: 1500W Peak, 220V bi-directional, 5% TVS (SMC)

Full-wave Bridge Rectification
CBRDFA4-100: 4.0A, 1000V full-wave bridge (BR DFN-A)
CBR6M-L100: 6.0A, 1000V full-wave bridge (Case DM)
CBR25-040P: 25A, 600V full-wave bridge (Case FP)

PFC
HyperFast Rectifier
CHD8-06: 8A, 600V, 25ns HyperFast Rectifier (DPAK)

Switching
HyperFast & SuperFast Rectifiers
CMR1H-04MFL: 1.0A, 400V, 25ns HyperFast Rectifier (SMAFL)
CMR2S-06: 2.0A, 600V, 30ns SuperFast Rectifier (SMB)
CMR3S-06: 3.0A, 600V, 35ns SuperFast Rectifier (SMC)

Output Rectification
CSHD6-40C: 6.0A, 40V, Dual Common Cathode Schottky Rectifier (DPAK)
CSHDD16-40C: 16A, 40, Dual Common Cathode Schottky Rectifier (D2PAK)
CZSH10-40C: 10A, 40V, Dual Common Cathode Schottky Rectifier (SOT-223)

Silicon Carbide Schottky Rectifiers Bare die
(Contact Sales for information on Bare Die)
CPC08-SIC04-650: 4.0A, 650V
CPC09-SIC06-650: 6.0A, 650V
CPC10-SIC08-650: 8.0A, 650V
CPC07-SIC10-650: 10A, 650V
CPC15-SIC10-650: 10A, 650V*
CPC11-SIC30-650: 30A, 650V
CPC12-SIC02-1200: 2.0A, 1200V
CPC05-SIC05-1200: 5.0A, 1200V
CPC06-SIC10-1200: 10A, 1200V
CPC14-SIC10-1200: 10A, 1200V*
CPC13-SIC50-1200: 50A, 1200V
