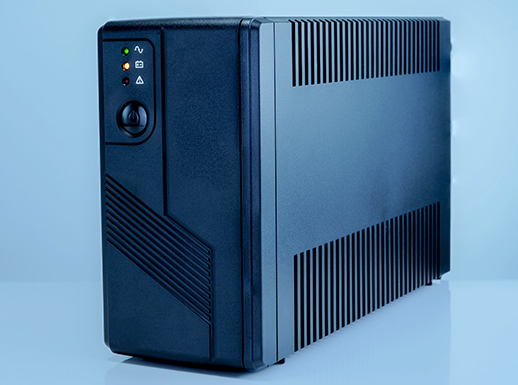

Uninterruptible Power Supply (UPS)

The latest Uninterruptible Power Supplies (UPSs) must maximize the efficient storage and conversion of energy for use during power outage occurrences. To accomplish this task, UPS designers must select semiconductor components that provide tangible gains in energy efficiency without undesirable performance trade-offs. AEM manufactures discrete semiconductor solutions designed to minimize total conduction losses for UPS applications.

Block Diagram

The latest Uninterruptible Power Supplies (UPSs) must maximize the efficient storage and conversion of energy for use during power outage occurrences. To accomplish this task, UPS designers must select semiconductor components that provide tangible gains in energy efficiency without undesirable performance trade-offs. Central Semiconductor manufactures discrete semiconductor solutions designed to minimize total conduction losses ideal for UPS applications.

Input Rectification/Protection:
Transient Voltage Suppressors (TVSs)
3SMC170CA: 3000W Peak, 170V bi-directional, 5% TVS (SMC)
1.5SMC170CA: 1500W Peak, 170V bi-directional, TVS (SMC)
1.5SMC200CA: 1500W Peak, 200V bi-directional, 5% TVS (SMC)
1.5SMC220CA: 1500W Peak, 220V bi-directional, 5% TVS (SMC)

Bridge Rectifiers (Full Wave)
CBR2-D060S: 2.0A, 600V full-wave bridge (SMDIP)
CBRDFA4-100: 4.0A, 1000V full-wave bridge (BR DFN-A)
CBR25-040P: 25A, 400V full-wave bridge (Case FP)

Battery and Charging Circuit:
Schottky Rectifiers
CMSH3-40FL: 3.0A, 40V, Schottky rectifier, Low Profile (SMBFL)
CMSH5-40FL: 5.0A, 40V, Schottky rectifier, Low Profile (SMBFL)
CSHDD8-60: 8.0A, 60V, Schottky rectifier (DPAK)
CTLSH10-45M364: 10A, 45V, Schottky rectifier (TLM364)
CTLSH15-60M364: 15A, 60V, Low VF, Schottky rectifier, Low Profile (TLM364)
CMDFSHC3-100: 3.0A, 100V, Schottky rectifier, Low Profile (SMC DFN)
CMDFSHC5-100: 5.0A, 100V, Schottky rectifier, Low Profile (SMC DFN)

MOSFETs
CMPDM302PH: 2.4A, 30V, P-Channel MOSFET (SOT-23F)
CXDM4060N: 6.0A, 40V, N-Channel MOSFET (SOT-89)
CXDM4060P: 6.0A, 40V, P-Channel MOSFET (SOT-89)
CWDM3011N: 11A, 30V, N-Channel MOSFET (SOIC-8)
CWDM3011P: 11A, 30V, P-Channel MOSFET (SOIC-8) • Zener Diodes

Zener Diodes
CMZ5339B: 5.6V, 5W, Zener Diode (SMC)
CMZ5349B: 12V, 5W, Zener Diode (SMC)
CMZ5352B: 15V, 5W, Zener Diode (SMC)

DC/AC Inverter:
Rectifiers
CMR3S-06: 3.0A, 600V, 35ns Super Fast rectifier (SMC)
CMR5U-06: 5.0A, 600V, 100ns Ultra Fast rectifier (SMC)
CHD8-06: 8.0A, 600V, 25ns HyperFast rectifier (DPAK)
CUD10-06: 10A, 600V, 35ns, Ultra Fast rectifier (DPAK)

DC/AC Converter:
Rectifiers
CMR1H-04MFL: 1.0A, 400V, 25ns HyperFast rectifier (SMAFL)
CMR2S-06: 2.0A, 600V, 30ns Super Fast rectifier (SMB)
CMR3S-06: 3.0A, 600V, 35ns Super Fast rectifier (SMC)
CMR5U-06: 5.0A, 600V, 100ns Ultra Fast rectifier (SMC)
CHD8-06: 8.0A, 600V, 25ns HyperFast rectifier (DPAK)

Power Factor Correction:
Rectifiers
CMR3S-06: 3.0A, 600V, 35ns Super Fast rectifier (SMC)
CHD8-06: 8.0A, 600V, 25ns HyperFast rectifier (DPAK)
CUD10-06: 10A, 600V, 35ns, Ultra Fast rectifier (DPAK)
