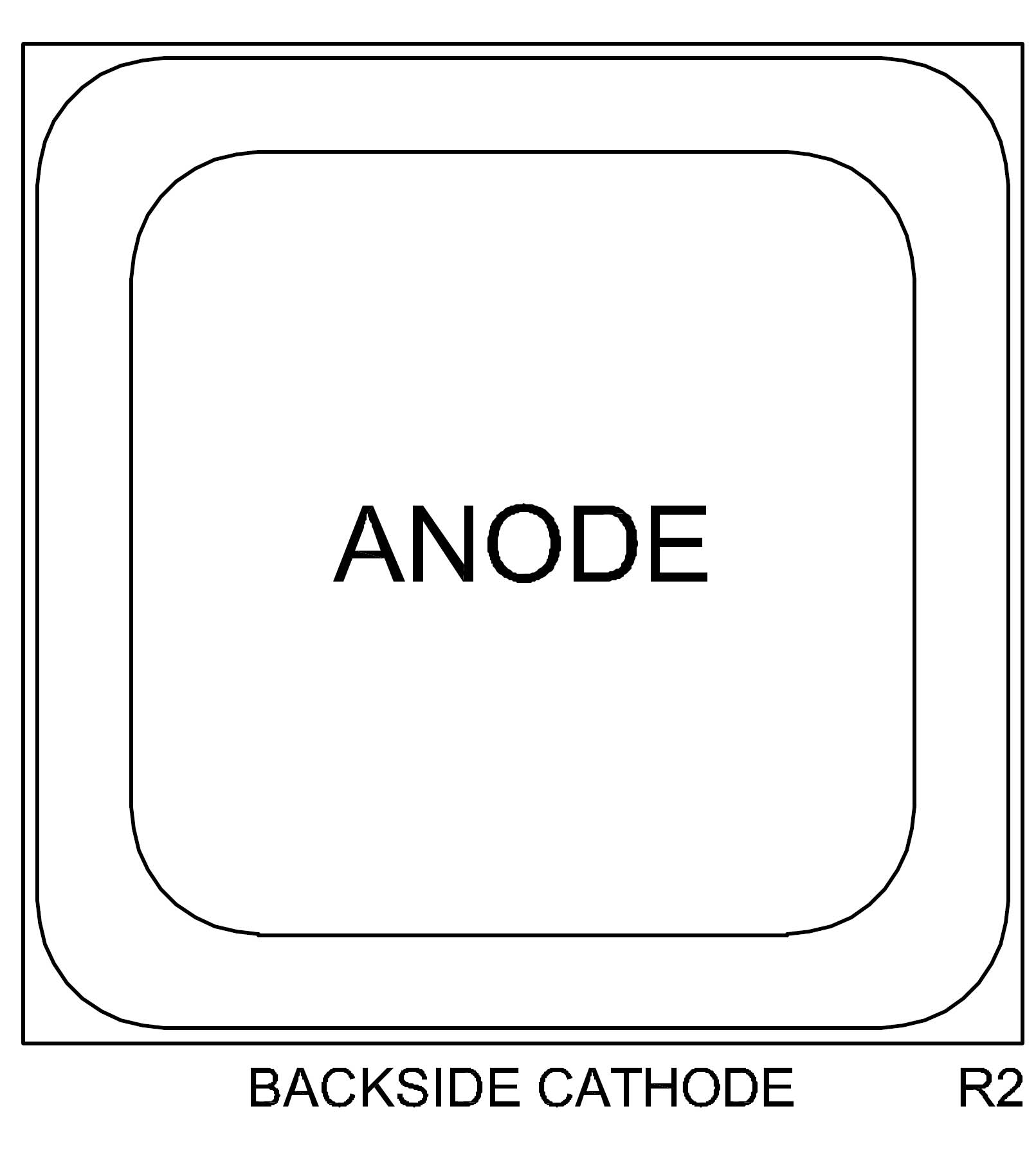

CPD07-CR6A6GPP

6A,600V Bare die,100.000 X 100.000 mils,Rectifier-General Purpose

Case Type: CHIP,WAFFLE

Average Forward Current (I_O)

6 A

Continuous Reverse Voltage (V_R)

600 V

Forward Voltage (V_F)

1 V

Junction Temperature (T_j)

-65 — 175 °C

Peak Forward Surge Current (I_FSM)

400 A

Peak Non-Repetitive Rerverse Voltage (V_RSM)

720 V

Peak Repetitive Reverse Voltage (V_RRM)

600 V

Reverse Voltage Leakage Current (I_R)

10 µA

Reverse Voltage Leakage Current (I_R)

1 mA

RMS Reverse Voltage (V_R(RMS))

420 V

Storage Temperature (T_stg)

-65 — 175 °C

Part	Package	Buy	Status	Description	ECCN Code	HTS Code	Termination
CPD07-CR6A6GPP-CT	WafflePack@100		Active	6A,600V Bare die,100.000 X 100.000 mils,Rectifier-General Purpose	EAR99	8541.10.0040	PBFREE


Item	Type
No matching documents found.
Analytical Test Report:Epoxy Molding Compound	Analytical Test Report
Analytical Test Report:Green Epoxy Molding Compound	Analytical Test Report
Analytical Test Report:Leadframe	Analytical Test Report
Analytical Test Report:Sn Plating	Analytical Test Report
CPD07-CR6A6GPP_WPD.PDF	Device Datasheet
Material Composition:CASE 106	Material Composition
Package Detail Document:CASE 106	Package Detail Document
Process Change Notice:AXIAL LEAD PRODUCTS	Process Change Notice
Product Reliability Data:CASE 106 Package Reliability	Product Reliability Data
Spice Model:Spice Model CR6A6GPP	Spice Model
