CPD18-CUDD8-04

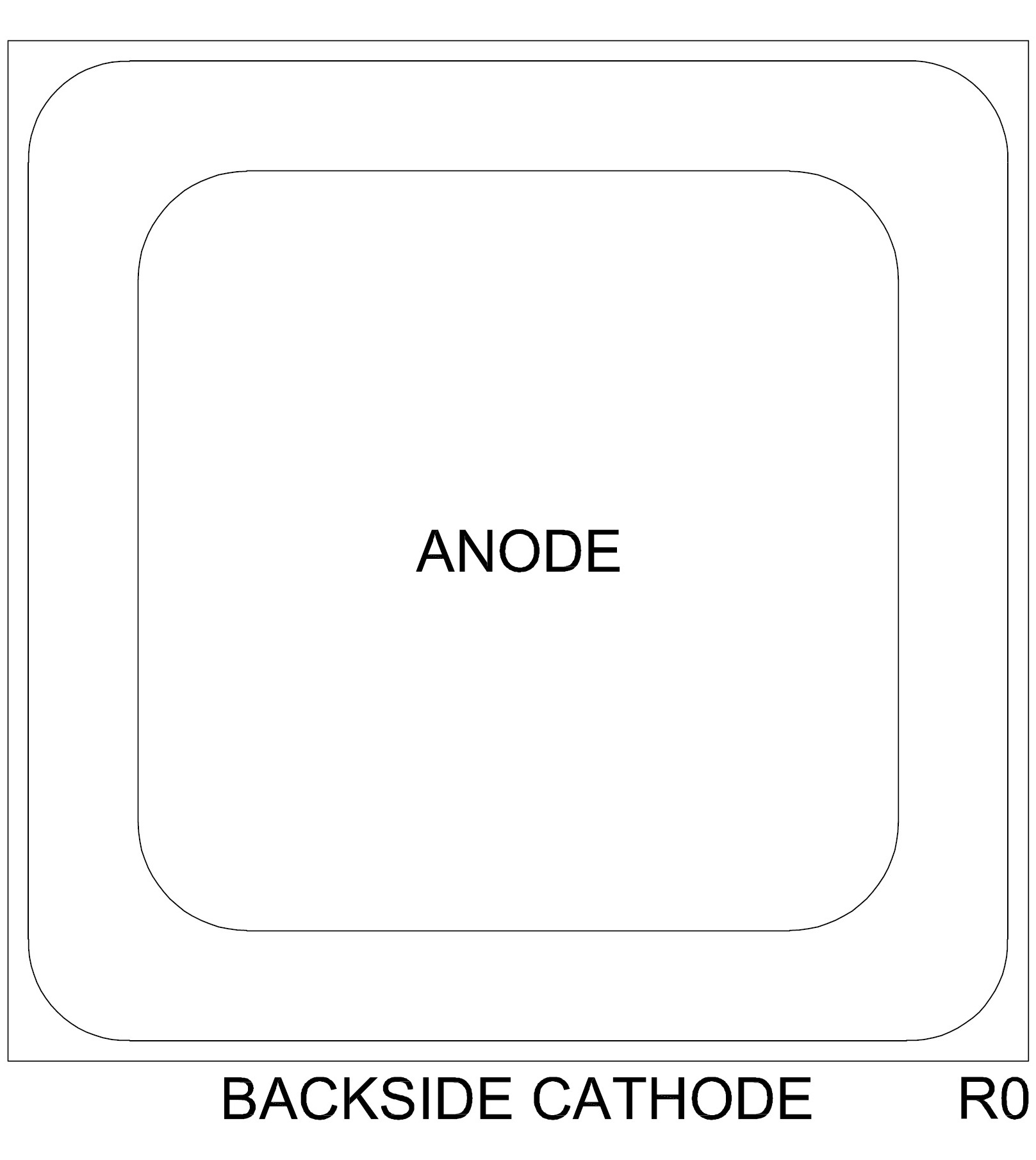

8A,400V Bare die,98.000 X 98.000 mils,Rectifier-Ultra Fast <100ns
Case Type: CHIP,WAFFLE
Technical Specifications
Similar Products with Selected SpecificationsTest Conditions
IF = 8 A
Test Conditions
IF = 8 A
TC = 150 °C
Test Conditions
VR = 10 V
f = 1 MHz
Test Conditions
IF = 0.5 A
IR = 1 A
Irr = 0.25 A
Test Conditions
VR = 400 V
Test Conditions
VR = 400 V
TC = 150 °C
Ordering
| Part | Package | Buy | Status | Description | ECCN Code | HTS Code | Termination |
|---|---|---|---|---|---|---|---|
| CPD18-CUDD8-04-CT | WafflePack@100 | Active | 8A,400V Bare die,98.000 X 98.000 mils,Rectifier-Ultra Fast <100ns | EAR99 | 8541.10.0040 | PBFREE | |
| CPD18-CUDD8-04-WN | Wafer | Active | 8A,400V Bare die,98.000 X 98.000 mils,Rectifier-Ultra Fast <100ns | EAR99 | 8541.10.0040 | PBFREE |
