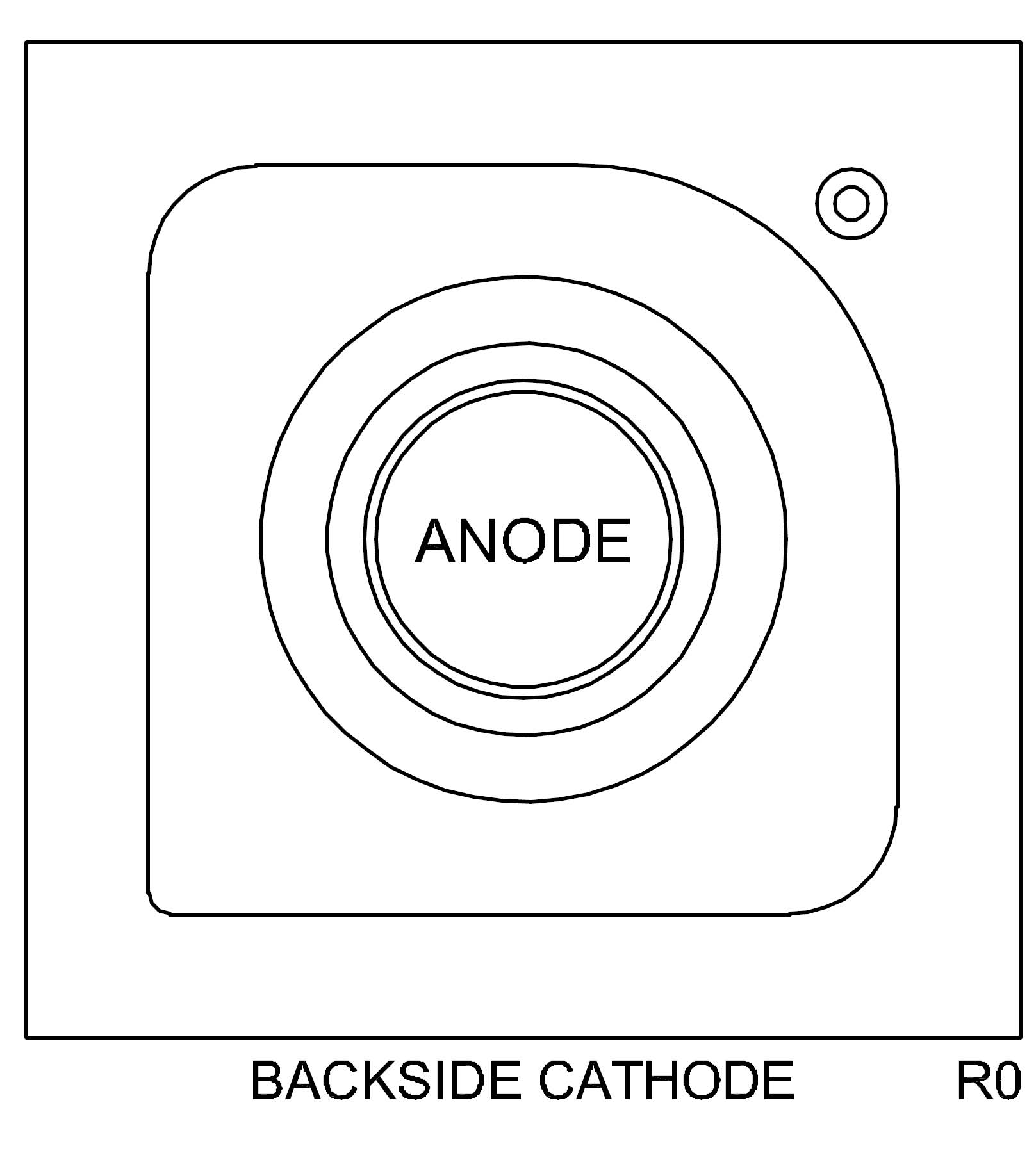

CPD102X-CMPD6263

Technical Specifications

Continuous Forward Current (I_F)

15 mA

Forward Voltage (V_F)

410 mV

(395 mV Typical)

Junction Capacitance (C_J)

2 pF

Junction Temperature (T_j)

-65 — 150 °C

Peak Forward Surge Current (I_FSM)

50 mA

Peak Repetitive Reverse Voltage (V_RRM)

70 V

Power Dissipation (P_D)

350 mW

Reverse Breakdown Voltage (B_VR)

70 V

Reverse Voltage Leakage Current (I_R)

200 nA

(10 nA Typical)

Storage Temperature (T_stg)

-65 — 150 °C

Thermal Resistance Junction-Ambient (Θ_JA)

357 °C/W

Part	Package	Status	Description	ECCN Code	HTS Code	Termination
CPD102X-CMPD6263-CT	WafflePack@1,024	Not Recommended for New Design	70V Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A)	EAR99	8541.10.0040	PBFREE
CPD102X-CMPD6263-WN	Wafer	Not Recommended for New Design	70V Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A)	EAR99	8541.10.0040	PBFREE
CPD102X-CMPD6263-WR	Wafer	Not Recommended for New Design	70V Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A)	EAR99	8541.10.0040	PBFREE


Item	Type
No matching documents found.
Analytical Test Report:Active Device, Rectifier	Analytical Test Report
Analytical Test Report:Die	Analytical Test Report
Analytical Test Report:Die	Analytical Test Report
Analytical Test Report:TVS Die	Analytical Test Report
Analytical Test Report:Wafer Rectifier	Analytical Test Report
Analytical Test Report:Wafer Schottky	Analytical Test Report
Analytical Test Report:Wafer Switching Diode	Analytical Test Report
Analytical Test Report:Wafer Transistor	Analytical Test Report
Analytical Test Report:Wafer Zener	Analytical Test Report
Analytical Test Report:Wafer/Die	Analytical Test Report
CPD102X-CMPD6263_WPD.PDF	Device Datasheet
Package Detail Document:WAFER	Package Detail Document
Product EOL Notice:BLANKET PDN-BARE DIE PRODUCTS	Product EOL Notice
Spice Model:Spice Model CPD92X	Spice Model
