CPD80V-2003

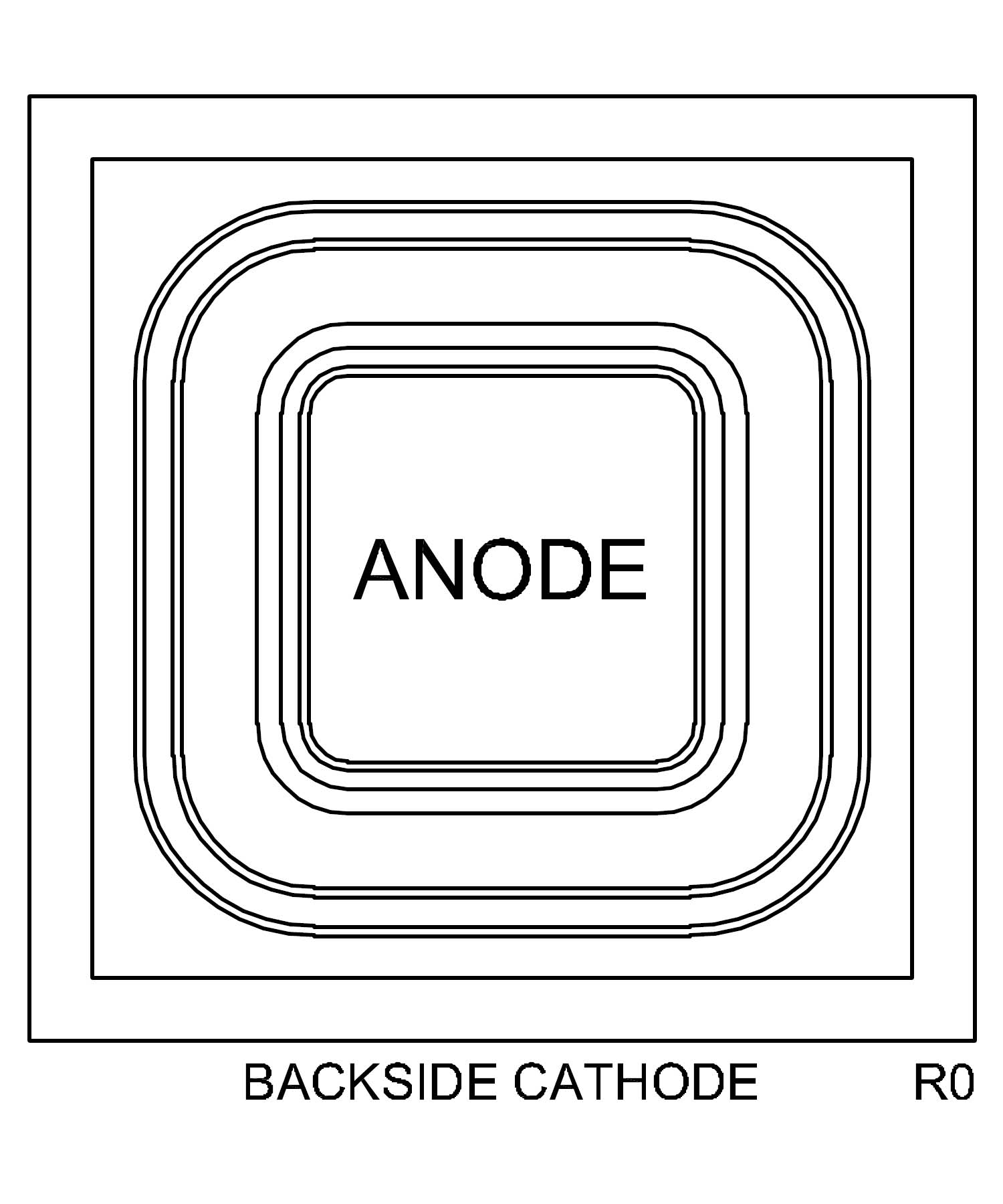

Bare die,16.100 X 16.100 mils,High Voltage Switching Diode

Case Type: CHIP,WAFFLE

Back to Top Specifications Ordering Resources Support

Technical Specifications

Similar Products with Selected Specifications
Average Forward Current (IO)
200 mA
Continuous Forward Current (IF)
225 mA
Continuous Reverse Voltage (VR)
350 V
Forward Voltage (VF)
1 V

(0.95 V Typical)

Junction Capacitance (CJ)
5 pF

(0.5 pF Typical)

Junction Temperature (Tj)
-65 — 150 °C
Peak Forward Surge Current (IFSM)
4 A
Peak Forward Surge Current (IFSM)
1 A
Peak Repetitive Forward Current (IFRM)
625 mA
Peak Repetitive Reverse Voltage (VRRM)
375 V
Power Dissipation (PD)
350 mW
Reverse Breakdown Voltage (BVR)
375 V

(460 V Typical)

Reverse Recovery Time (trr)
50 ns

(11 ns Typical)

Reverse Voltage Leakage Current (IR)
1 µA

(0.07 µA Typical)

Storage Temperature (Tstg)
-65 — 150 °C
Thermal Resistance Junction-Ambient (ΘJA)
357 °C/W

Ordering

Part Package Buy Status Description ECCN Code HTS Code Termination
CPD80V-2003-CT20 WafflePack@20 Special Order Item Bare die,16.100 X 16.100 mils,High Voltage Switching Diode EAR99 8541.10.0040 PBFREE

Resources

Item Type
Analytical Test Report:Active Device, Rectifier Analytical Test Report
Analytical Test Report:Die Analytical Test Report
Analytical Test Report:Die Analytical Test Report
Analytical Test Report:Wafer Schottky Analytical Test Report
Analytical Test Report:Wafer Switching Diode Analytical Test Report
Analytical Test Report:Wafer Transistor Analytical Test Report
CPD80V.PDF Device Datasheet
Package Detail Document:WAFER Package Detail Document
