CPD91V-CD6001

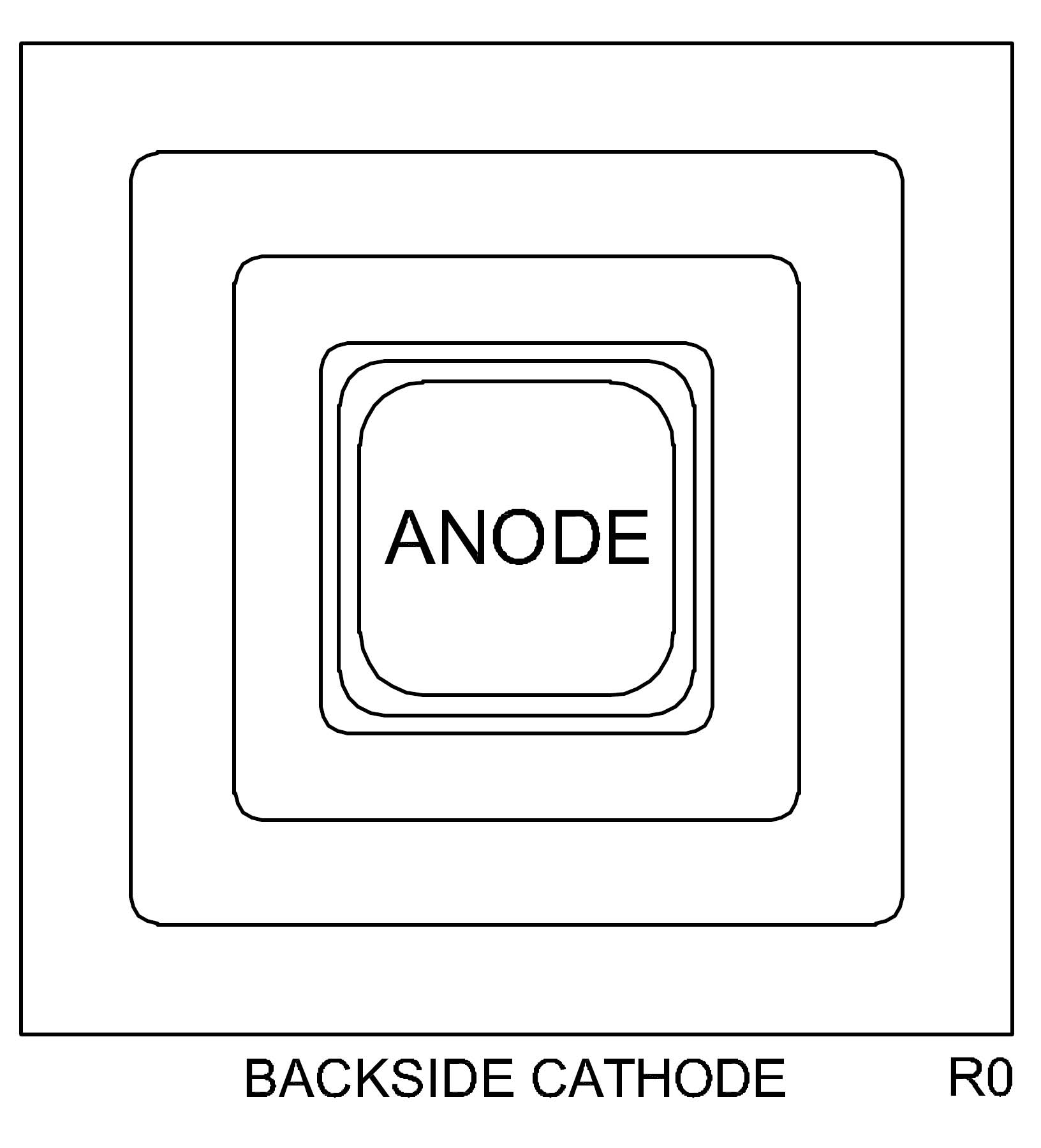

Bare die,11.030 X 11.030 mils,Low Leakage Switching Diode

Case Type: CHIP,WAFFLE

Back to Top Specifications Ordering Resources Support

Technical Specifications

Similar Products with Selected Specifications
Average Forward Current (IO)
250 mA
Continuous Reverse Voltage (VR)
75 V
Forward Voltage (VF)
850 mV
Forward Voltage (VF)
950 mV
Forward Voltage (VF)
1.1 V
Junction Capacitance (CJ)
2 pF
Junction Temperature (Tj)
-65 — 150 °C
Peak Forward Surge Current (IFSM)
4 A
Peak Forward Surge Current (IFSM)
1 A
Peak Repetitive Reverse Voltage (VRRM)
100 V
Power Dissipation (PD)
250 mW
Reverse Breakdown Voltage (BVR)
100 V
Reverse Recovery Time (trr)
3 µs
Reverse Voltage Leakage Current (IR)
500 pA
Storage Temperature (Tstg)
-65 — 150 °C
Thermal Resistance Junction-Case (ΘJC)
500 °C/W
