CPZ48X-1N4699

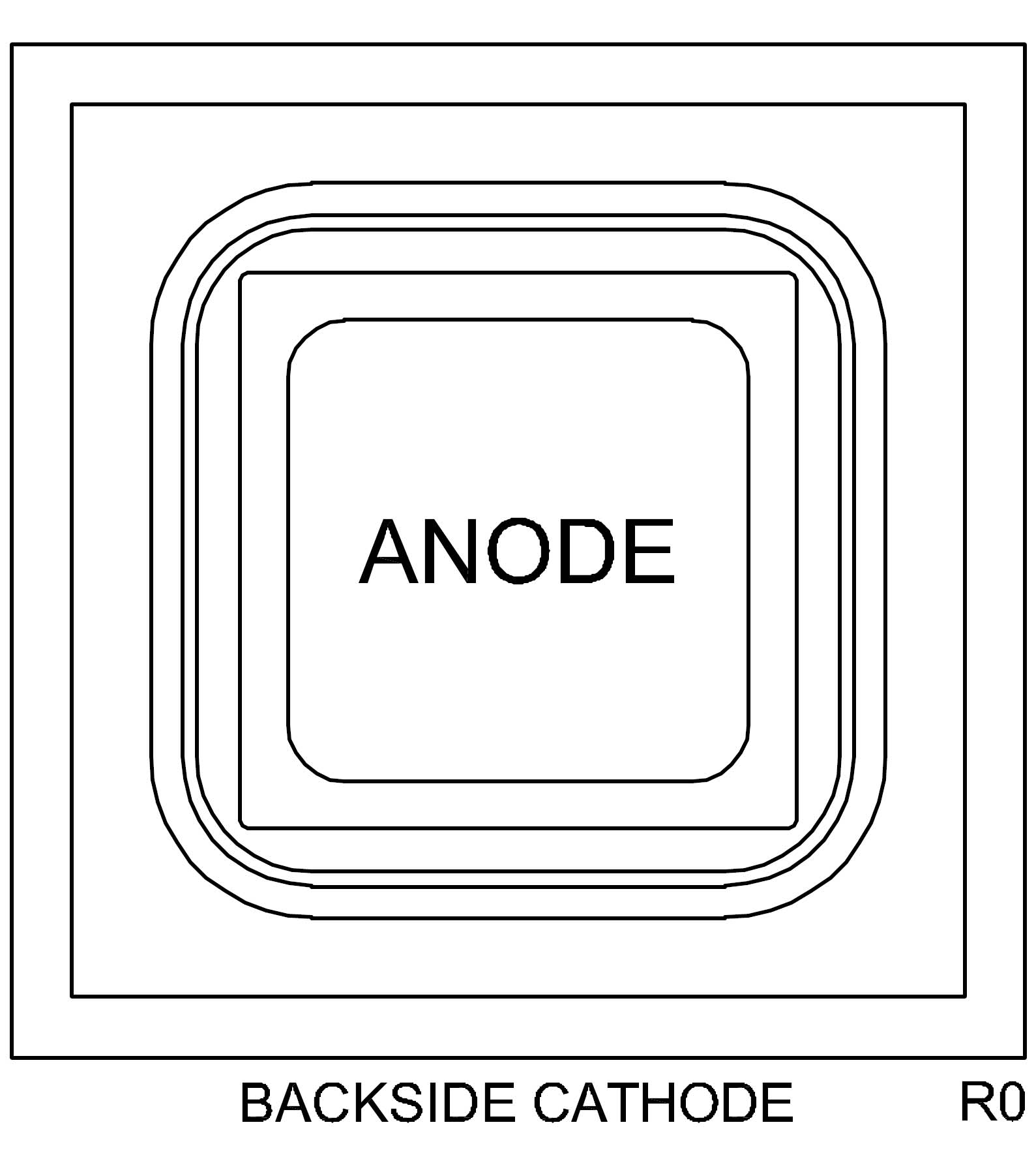

12V,500mW Bare die,13.000 X 13.000 mils,Diode-Zener

Case Type: CHIP,WAFFLE

Forward Voltage (V_F)

1.5 V

Junction Temperature (T_j)

-65 — 200 °C

Maximum Change in Zener Voltage Over Current (ΔV_Z)

120 mV

Maximum Zener Current (I_ZM)

20.4 mA

Power Dissipation (P_D)

500 mW

Reverse Voltage Leakage Current (I_R)

50 nA

Storage Temperature (T_stg)

-65 — 200 °C

Zener Voltage (V_Z)

11.4 — 12.6 V

(12 V Typical)

Part	Package	Buy	Status	Description	ECCN Code	HTS Code	Termination
CPZ48X-1N4699-CT	WafflePack@400		Active	12V,500mW Bare die,13.000 X 13.000 mils,Diode-Zener	EAR99	8541.10.0040	PBFREE
