CPZ59X-1N5259B

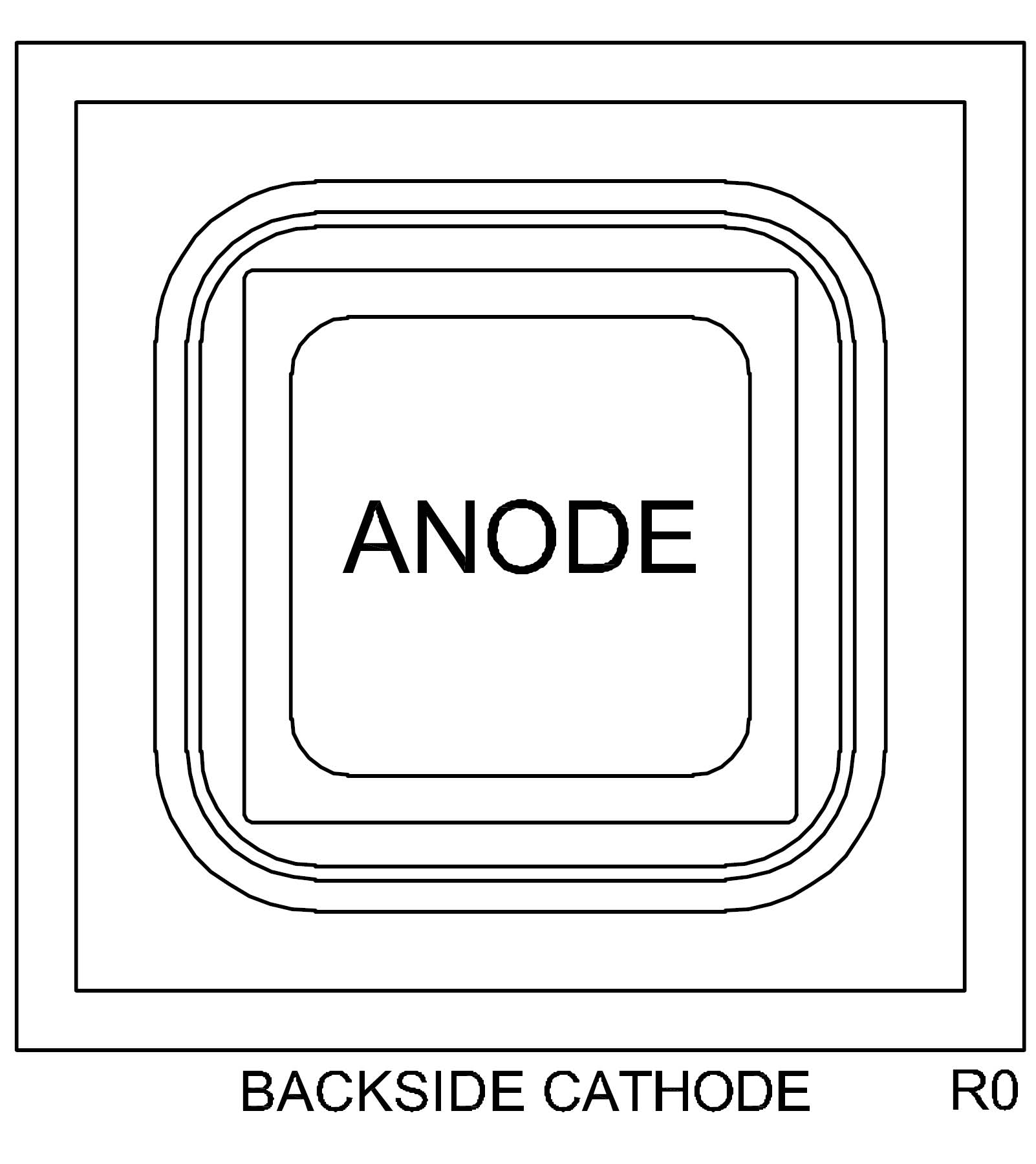

Bare die,12.990 X 12.990 mils,Diode-Zener,0.5W Zener Diode

Case Type: CHIP,WAFFLE

Forward Voltage (V_F)

1.2 V

Junction Temperature (T_j)

-65 — 200 °C

Maximum Temperature Coefficient (ΘV_Z)

0.094 %/°C

Power Dissipation (P_D)

500 mW

Reverse Voltage Leakage Current (I_R)

0.1 µA

Storage Temperature (T_stg)

-65 — 200 °C

Zener Impedance (Z_ZT)

80 Ω

Zener Knee Impedance (Z_ZK)

800 Ω

Zener Voltage (V_Z)

37.05 — 40.95 V

(39 V Typical)
