CP324X-7002A

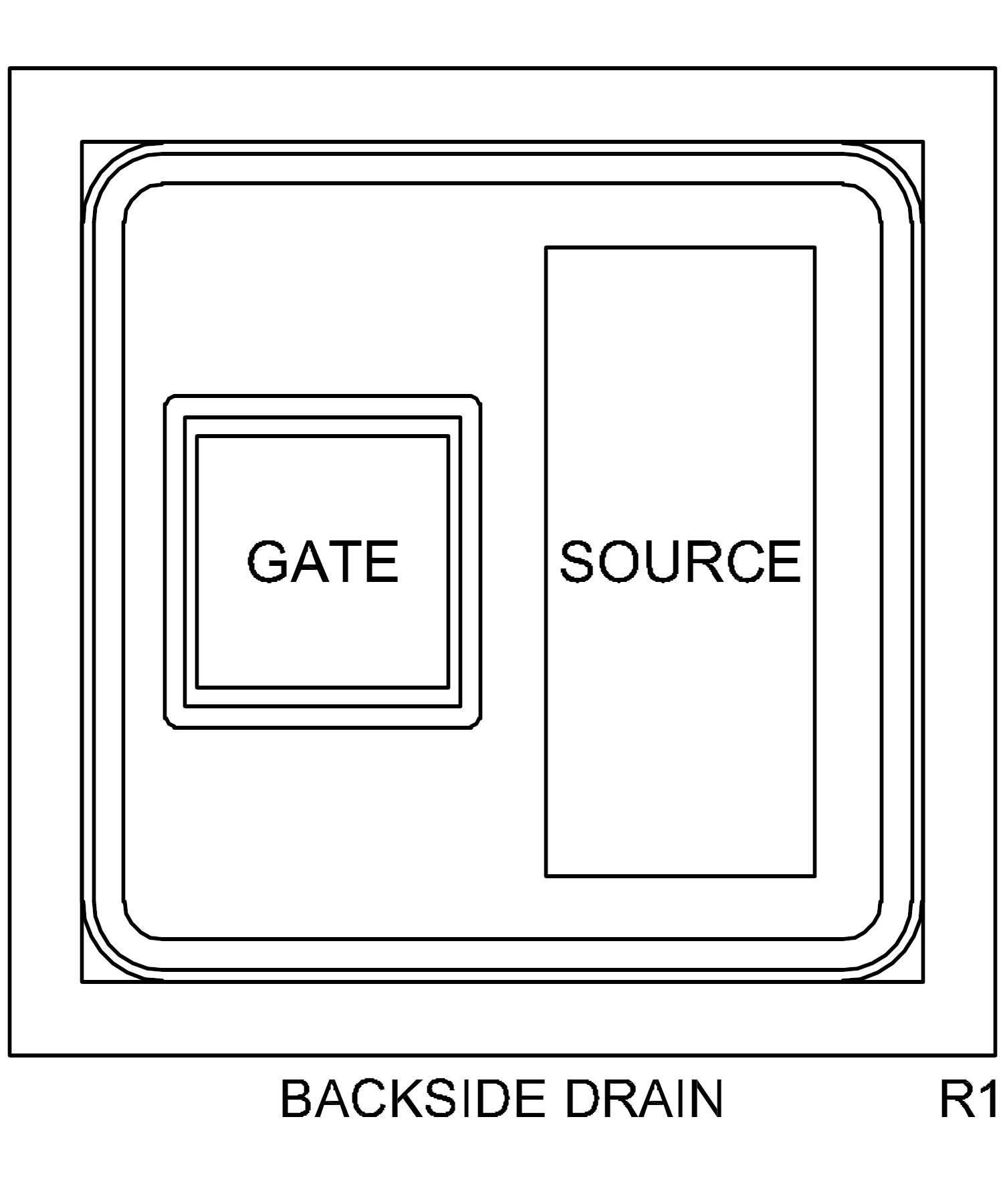

Bare die,21.650 X 21.650 mils,N-Chan Enhancement Mode MOSFET

Case Type: CHIP,WAFFLE

Back to Top Specifications Ordering Resources

Technical Specifications

Similar Products with Selected Specifications
Common Source Input Capacitance (Ciss)
50 pF
Common Source Output Capacitance (Coss)
25 pF
Common Source Reverse Transfer Capacitance (Crss)
5 pF
Continuous Drain Current (ID)
280 mA
Continuous Source Current (Body Diode) (IS)
280 mA
Diode Forward On Voltage (VSD)
1.2 V
Drain-Gate Voltage (VDG)
60 V
Drain-Source Breakdown Voltage (BVDSS)
60 V
Drain-Source On Voltage (VDS(ON))
1 V
Drain-Source On Voltage (VDS(ON))
150 mV
Drain-Source Voltage (VDS)
60 V
Forward Transconductance (gFS)
80 mS
Gate Leakage Current, Forward (IGSSF)
100 nA
Gate Leakage Current, Reverse (IGSSR)
100 nA
Gate Threshold Voltage (VGS(th))
1 — 2.5 V
Gate-Drain Charge (Qgd)
0.148 nC
Gate-Source Charge (Qgs)
0.196 nC
Gate-Source Voltage (VGS)
40 V
Junction Temperature (Tj)
-65 — 150 °C
Maximum Pulsed Drain Current (IDM)
1.5 A
Maximum Pulsed Source Current (ISM)
1.5 A
On State Drain Current (ID(ON))
500 mA
Power Dissipation (PD)
350 mW
Power Dissipation (PD)
300 mW
Power Dissipation (PD)
150 mW
Saturation Drain Current (IDSS)
1 µA
Saturation Drain Current (IDSS)
500 µA
Static Drain-Source On Resistance (rDS(ON))
2 Ω
Static Drain-Source On Resistance (rDS(ON))
3.5 Ω
Static Drain-Source On Resistance (rDS(ON))
3 Ω
Static Drain-Source On Resistance (rDS(ON))
5 Ω
Storage Temperature (Tstg)
-65 — 150 °C
Thermal Resistance Junction-Ambient (ΘJA)
357 °C/W
Total Gate Charge (Qg)
0.592 nC
Turn Off Time (toff)
20 ns
Turn On Time (ton)
20 ns

Ordering

Part Package Buy Status Description ECCN Code HTS Code Termination
CP324X-7002A-CM200 WafflePack@200 Special Order Item Bare die,21.650 X 21.650 mils,N-Chan Enhancement Mode MOSFET EAR99 8541.21.0040 PBFREE
