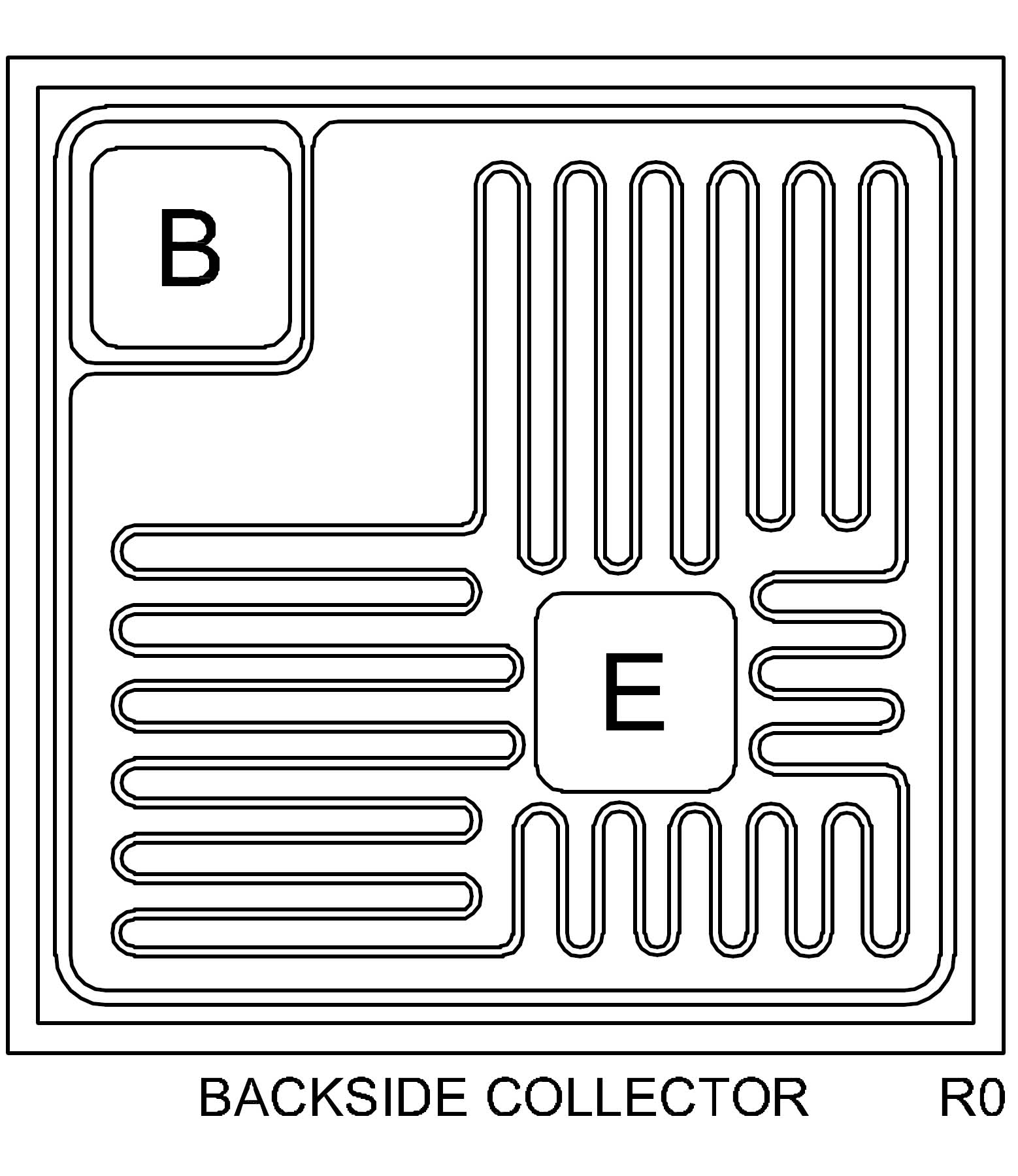

CP331-CZT2000

600mA,200V Bare die,39.370 X 39.370 mils,Transistor-Small Signal (<=1A)

Case Type: CHIP,WAFFLE

Base-Emitter On Voltage (V_BE(ON))

2 V

Collector-Base Cutoff Current (I_CBO)

500 nA

Collector-Base Voltage (V_CBO)

200 V

Collector-Emitter Breakdown Voltage (BV_CES)

200 V

Collector-Emitter Saturation Voltage (V_CE(SAT))

900 mV

Collector-Emitter Saturation Voltage (V_CE(SAT))

1.1 V

Collector-Emitter Saturation Voltage (V_CE(SAT))

1.2 V

Collector-Emitter Voltage (V_CES)

200 V

Continuous Collector Current (I_C)

600 mA

DC Current Gain (h_FE)

3000

DC Current Gain (h_FE)

3000

DC Current Gain (h_FE)

3000

Emitter-Base Cutoff Current (I_EBO)

100 nA

Emitter-Base Voltage (V_EBO)

10 V

Junction Temperature (T_j)

-65 — 150 °C

Power Dissipation (P_D)

2 W

Storage Temperature (T_stg)

-65 — 150 °C

Thermal Resistance Junction-Ambient (Θ_JA)

62.5 °C/W

Part	Package	Buy	Status	Description	ECCN Code	HTS Code	Termination
CP331-CZT2000-CT	WafflePack@400		Active	600mA,200V Bare die,39.370 X 39.370 mils,Transistor-Small Signal (<=1A)	EAR99	8541.29.0040	PBFREE
