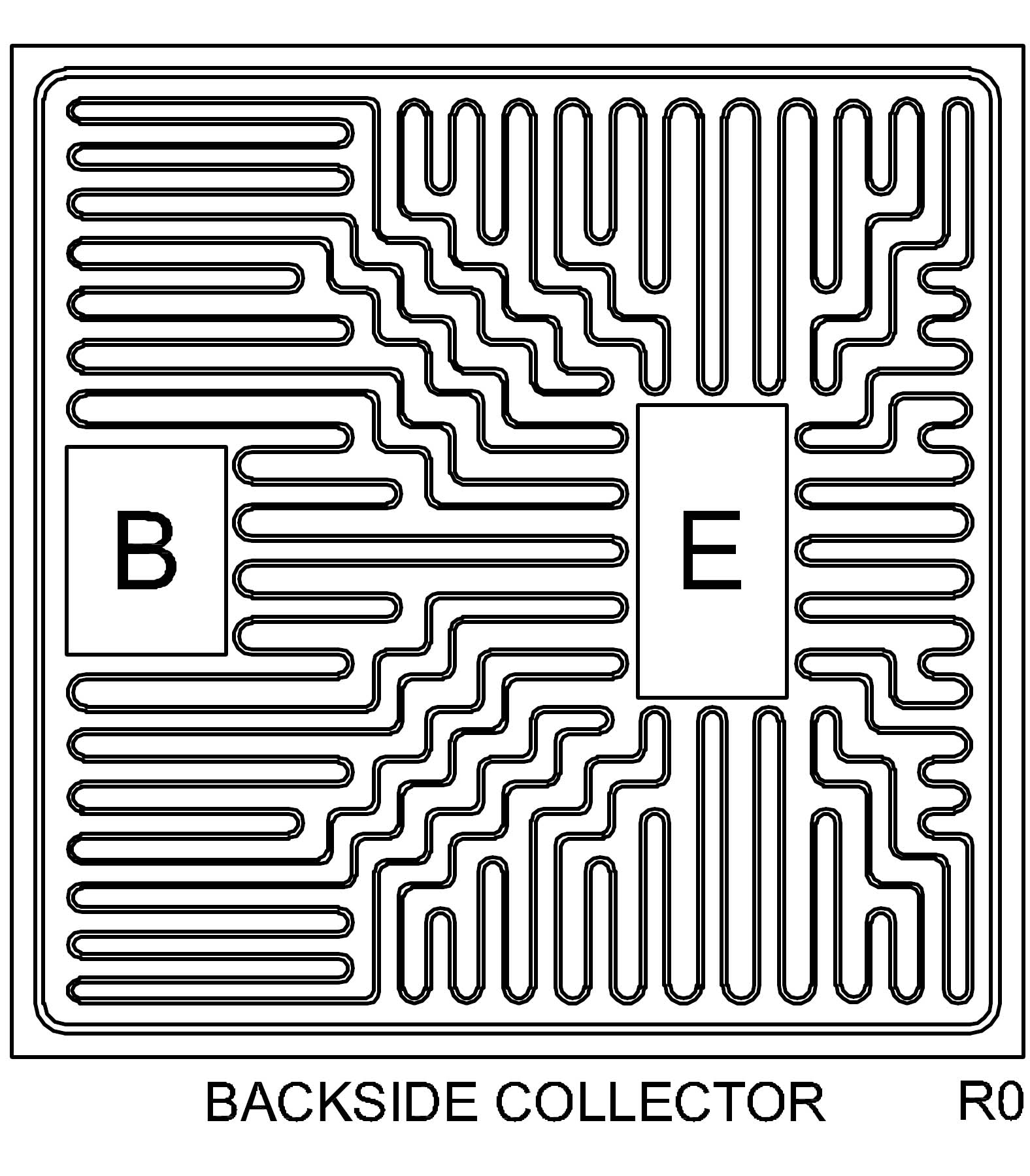

CP348-2N5154
80V,5A,1W Bare die,82.677 X 82.677 mils,Transistor-Bipolar Power (>1A)
Case Type: CHIP,WAFFLE
Technical Specifications
Similar Products with Selected SpecificationsTest Conditions
IC = 2.5 A
VCE = 5 V
Test Conditions
IC = 2.5 A
IB = 250 mA
Test Conditions
IC = 5 A
IB = 500 mA
Test Conditions
IC = 1 mA
Test Conditions
IC = 100 mA
Test Conditions
VCE = 60 V
Test Conditions
VCE = 60 V
VBE(OFF) = 2 V
TA = 150 °C
Test Conditions
IC = 2.5 A
IB = 250 mA
Test Conditions
IC = 5 A
IB = 500 mA
Test Conditions
VCE = 5 V
IC = 500 mA
f = 20 MHz
Test Conditions
VCE = 5 V
IC = 50 mA
Test Conditions
VCE = 5 V
IC = 2.5 A
Test Conditions
VCE = 5 V
IC = 5 A
Test Conditions
VCE = 5 V
IC = 2.5 A
TA = -55 °C
Test Conditions
IE = 1 mA
Test Conditions
VEB = 5 V
Test Conditions
VCB = 10 V
f = 1 MHz
Ordering
| Part | Package | Buy | Status | Description | ECCN Code | HTS Code | Termination |
|---|---|---|---|---|---|---|---|
| CP348-2N5154-CT | WafflePack@100 | Active | 80V,5A,1W Bare die,82.677 X 82.677 mils,Transistor-Bipolar Power (>1A) | EAR99 | 8541.29.0040 | PBFREE |
