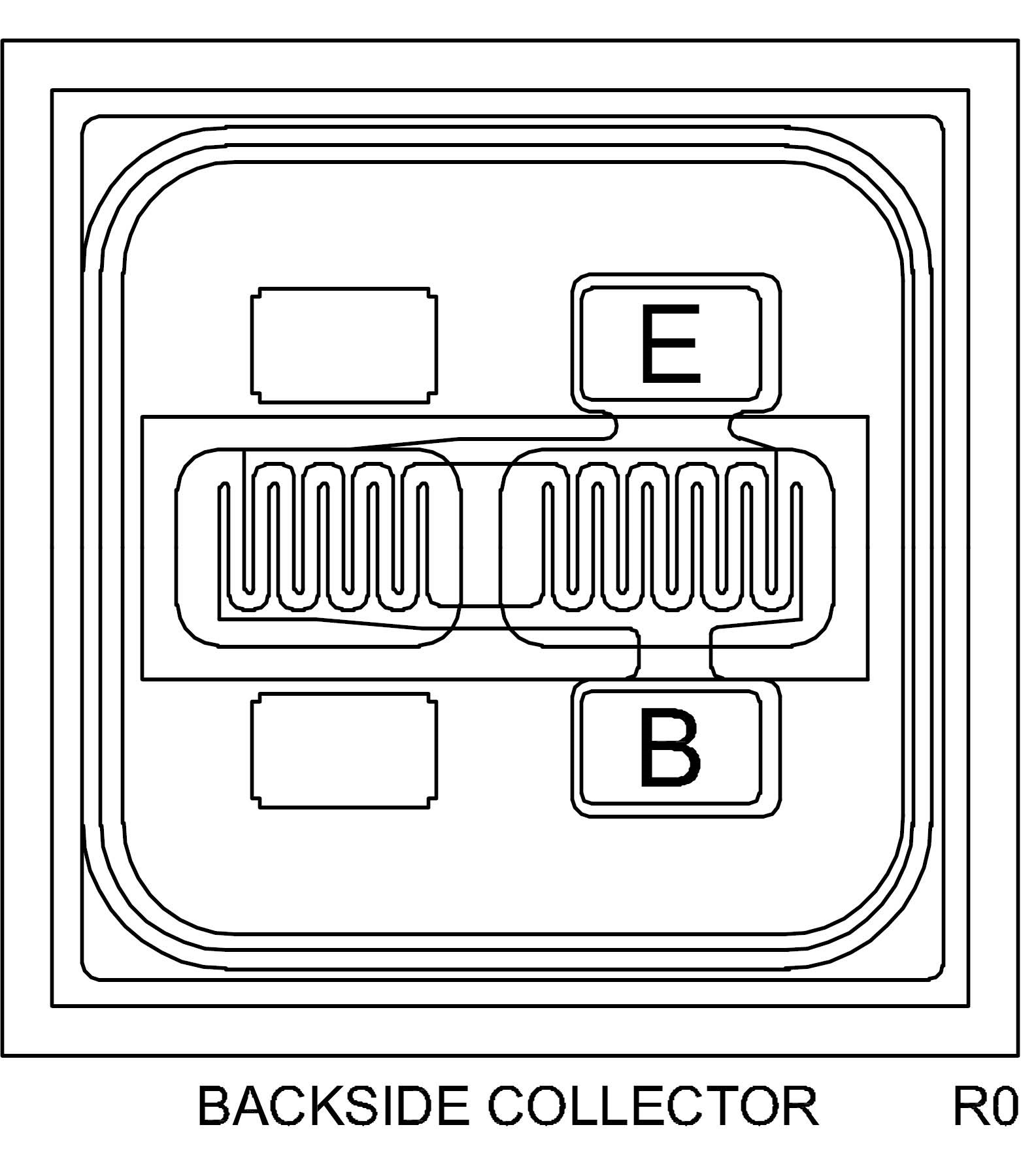

CP742X-CM4209

15V,200mA,500mW Bare die,17.700 X 17.700 mils,Transistor-Small Signal (<=1A)

Case Type: CHIP,WAFFLE

Back to Top Specifications Ordering Resources Support

Technical Specifications

Similar Products with Selected Specifications
Base-Emitter Saturation Voltage (VBE(SAT))
800 mV
Base-Emitter Saturation Voltage (VBE(SAT))
690 — 860 mV
Base-Emitter Saturation Voltage (VBE(SAT))
1.5 V
Collector-Base Breakdown Voltage (BVCBO)
15 V
Collector-Base Voltage (VCBO)
15 V
Collector-Emitter Breakdown Voltage (BVCES)
15 V
Collector-Emitter Breakdown Voltage (BVCEO)
15 V
Collector-Emitter Cutoff Current (ICES)
10 nA
Collector-Emitter Cutoff Current (ICES)
5 µA
Collector-Emitter Saturation Voltage (VCE(SAT))
150 mV
Collector-Emitter Saturation Voltage (VCE(SAT))
180 mV
Collector-Emitter Saturation Voltage (VCE(SAT))
600 mV
Collector-Emitter Voltage (VCEO)
15 V
Continuous Collector Current (IC)
200 mA
Current Gain-Bandwidth Product (fT)
850 MHz
DC Current Gain (hFE)
35
DC Current Gain (hFE)
50 — 120
DC Current Gain (hFE)
20
DC Current Gain (hFE)
40
Emitter-Base Breakdown Voltage (BVEBO)
4.5 V
Emitter-Base Voltage (VEBO)
4.5 V
Input Capacitance (Cib)
7 pF
Junction Temperature (Tj)
-65 — 200 °C
Output Capacitance (Cob)
7 pF
Power Dissipation (PD)
500 mW
Power Dissipation (PD)
1.2 W
Storage Temperature (Tstg)
-65 — 200 °C
Thermal Resistance Junction-Ambient (ΘJA)
350 °C/W
Thermal Resistance Junction-Case (ΘJC)
146 °C/W
Turn Off Time (toff)
20 ns
Turn On Time (ton)
20 ns

Ordering

Part Package Buy Status Description ECCN Code HTS Code Termination
CP742X-CM4209-CM WafflePack@400 Special Order Item 15V,200mA,500mW Bare die,17.700 X 17.700 mils,Transistor-Small Signal (<=1A) EAR99 8541.21.0040 PBFREE
CP742X-CM4209-CT WafflePack@400 Special Order Item 15V,200mA,500mW Bare die,17.700 X 17.700 mils,Transistor-Small Signal (<=1A) EAR99 8541.21.0040 PBFREE

Resources

Item Type
Analytical Test Report:Active Device, Rectifier Analytical Test Report
Analytical Test Report:Die Analytical Test Report
Analytical Test Report:Die Analytical Test Report
Analytical Test Report:TVS Die Analytical Test Report
Analytical Test Report:Wafer Rectifier Analytical Test Report
Analytical Test Report:Wafer Schottky Analytical Test Report
Analytical Test Report:Wafer Switching Diode Analytical Test Report
Analytical Test Report:Wafer Transistor Analytical Test Report
Analytical Test Report:Wafer Zener Analytical Test Report
Analytical Test Report:Wafer/Die Analytical Test Report
CP742X-CM4209_WPD.PDF Device Datasheet
Package Detail Document:WAFER Package Detail Document
Product EOL Notice:CP742X PROCESS Product EOL Notice
Spice Model:Spice Model CP742X Spice Model
