CP710V-HMPSA92-CM

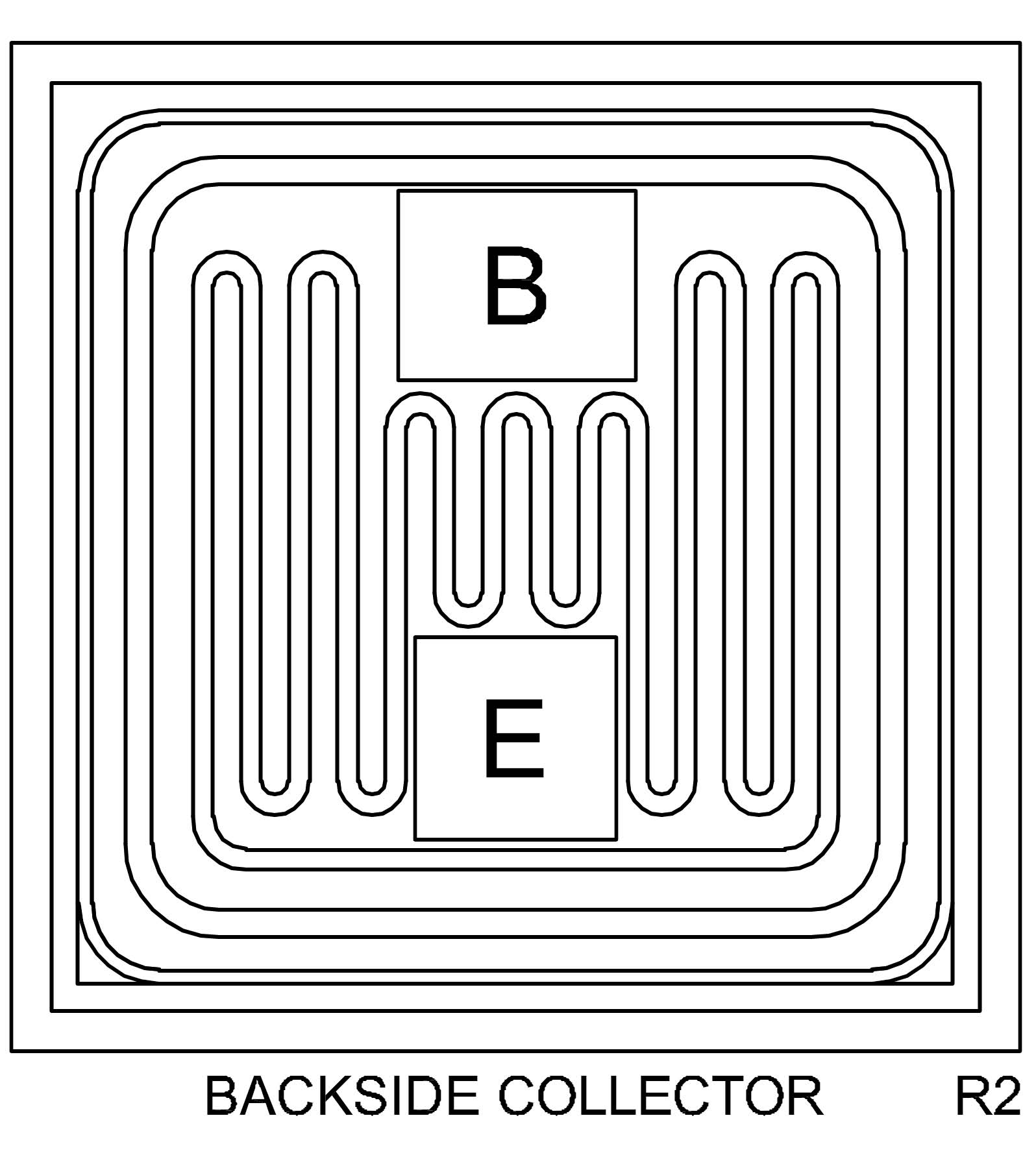

300V,500mA,625mW Up-Screened Bare Die MIL-PRF-38534 Class H Equivalent,25.980 X 25.980 mils,Transistor-Small Signal (<=1A)

Case Type: CHIP,WAFFLE

Back to Top Specifications Ordering Resources

Technical Specifications

Similar Products with Selected Specifications
Base-Emitter Saturation Voltage (VBE(SAT))
900 mV
Collector-Base Breakdown Voltage (BVCBO)
300 V
Collector-Base Cutoff Current (ICBO)
250 nA
Collector-Base Voltage (VCBO)
300 V
Collector-Emitter Breakdown Voltage (BVCEO)
300 V
Collector-Emitter Saturation Voltage (VCE(SAT))
500 mV
Collector-Emitter Voltage (VCEO)
300 V
Continuous Collector Current (IC)
500 mA
Current Gain-Bandwidth Product (fT)
50 MHz
DC Current Gain (hFE)
25
DC Current Gain (hFE)
40
DC Current Gain (hFE)
25
Emitter-Base Breakdown Voltage (BVEBO)
5 V
Emitter-Base Cutoff Current (IEBO)
100 nA
Emitter-Base Voltage (VEBO)
5 V
Junction Temperature (Tj)
-65 — 150 °C
Output Capacitance (Cob)
6 pF
Power Dissipation (PD)
625 mW
Power Dissipation (PD)
1.5 W
Storage Temperature (Tstg)
-65 — 150 °C
Thermal Resistance Junction-Ambient (ΘJA)
200 °C/W
Thermal Resistance Junction-Case (ΘJC)
83.3 °C/W

Ordering

Part Package Buy Status Description ECCN Code HTS Code Termination
CP710V-HMPSA92-CM WafflePack@400 Active 300V,500mA,625mW Up-Screened Bare Die MIL-PRF-38534 Class H Equivalent,25.980 X 25.980 mils,Transistor-Small Signal (<=1A) EAR99 8541.29.0040 PBFREE

Resources

Item Type
Analytical Test Report:Active Device, Rectifier Analytical Test Report
Analytical Test Report:Die Analytical Test Report
Analytical Test Report:Die Analytical Test Report
Analytical Test Report:Wafer Schottky Analytical Test Report
Analytical Test Report:Wafer Schottky Analytical Test Report
Analytical Test Report:Wafer Switching Diode Analytical Test Report
Analytical Test Report:Wafer Transistor Analytical Test Report
Analytical Test Report:Wafer Zener Analytical Test Report
Analytical Test Report:Wafer/Die Analytical Test Report
CP710V-MPSA92_WPD.PDF Device Datasheet
Package Detail Document:WAFER Package Detail Document
Process Change Notice:CP710V PROCESS Process Change Notice
Spice Model:Spice Model CP710 Spice Model
